Description

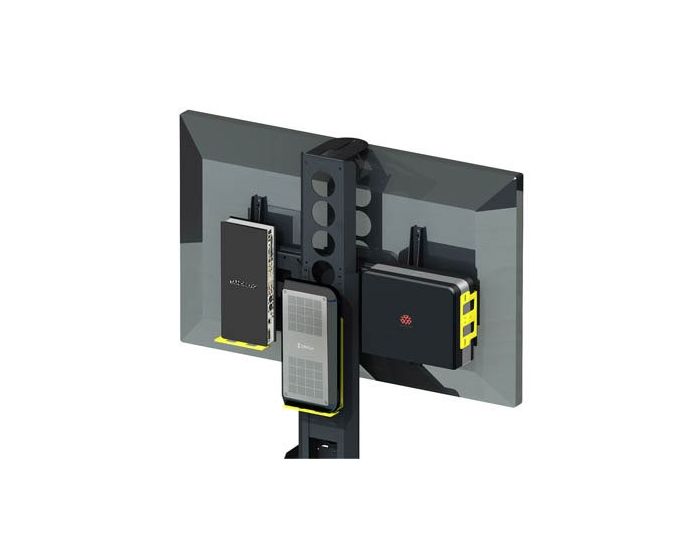

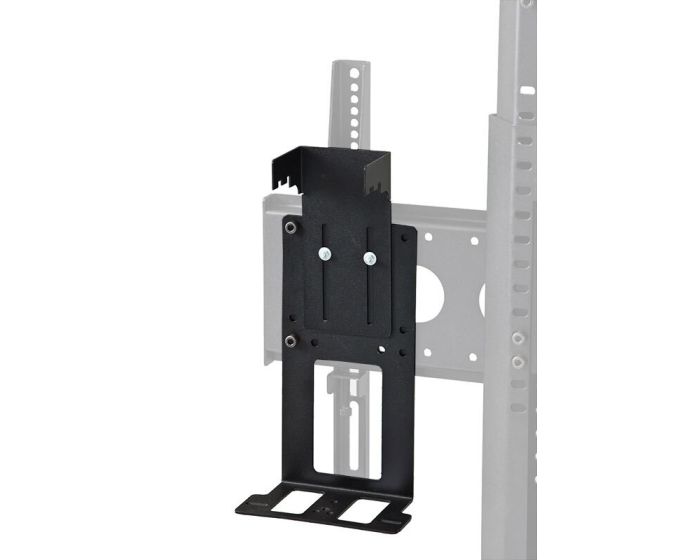

The AVFI Codec Bracket PM-HDCB HD provides a flexible mounting solution for compatible video conferencing codecs in professional AV installations. Designed for multiple mounting configurations, the bracket can position a codec behind a display, in front of the display, or to the left, right, or upside down according to the installation requirements.
The PM-HDCB is designed to attach to compatible AVFI PM-Series stands, as well as suitable walls, wooden carts, and MDF carts. Its offset design provides airflow space between the codec and mounting surface, supporting ventilation around compatible video conferencing equipment.
Constructed from thick 11-gauge steel, the PM-HDCB provides a durable mounting structure for compatible HD codecs. The bracket features a textured black powder-coated finish for a professional appearance and includes mounting hardware to simplify installation.
The PM-HDCB supports several HD video conferencing codec systems, including LifeSize Room and Team systems, Polycom HDX 6000/7000/8000 systems, and Tandberg Edge 95/85/75 systems. It is compatible with the AVFI PM-S-FL and PM-XFL mobile display stands and can also be mounted directly to a wall or suitable wood or MDF cart.
For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.
Related Products / Options
Specifications
-
Model: PM-HDCB
-
Product Type: HD Codec Bracket
-
Width: 7-1/4"
-
Depth: 4"
-
Height: 12"
-
Construction: Thick 11-gauge steel
-
Finish: Textured black powder coat
-
Color: Black
-
Mounting: Compatible PM-Series stands, walls, wooden carts, and MDF carts
-
Installation Configurations: Behind display, in front of display, left, right, or upside down
-
Ventilation: Offset design provides airflow space between codec and mounting surface
-
Mounting Hardware: Included
-
Compatible AVFI Stands: PM-S-FL and PM-XFL
-
Supported Codecs: LifeSize Room and Team (not Express), Polycom HDX 6000/7000/8000, and Tandberg Edge 95/85/75
-
Use: Video conferencing codec mounting for professional AV, telepresence, presentation, and collaboration installations
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
