Description

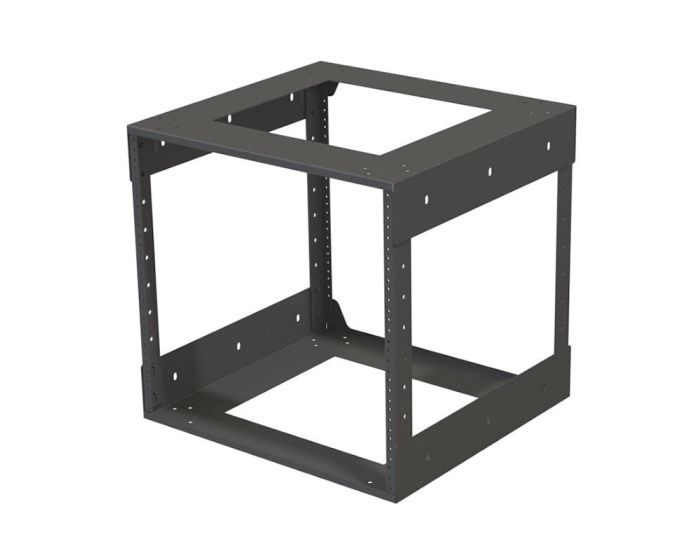

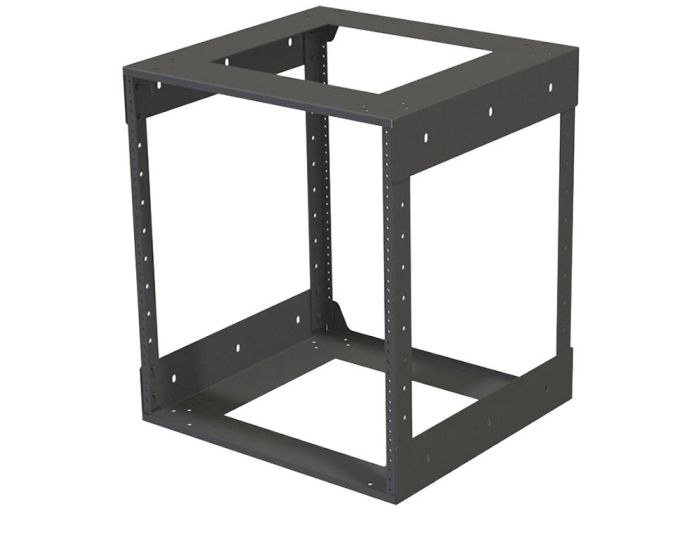

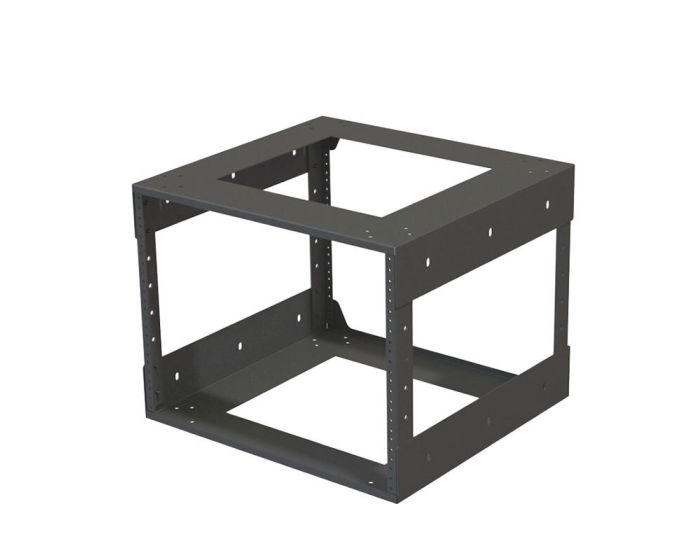

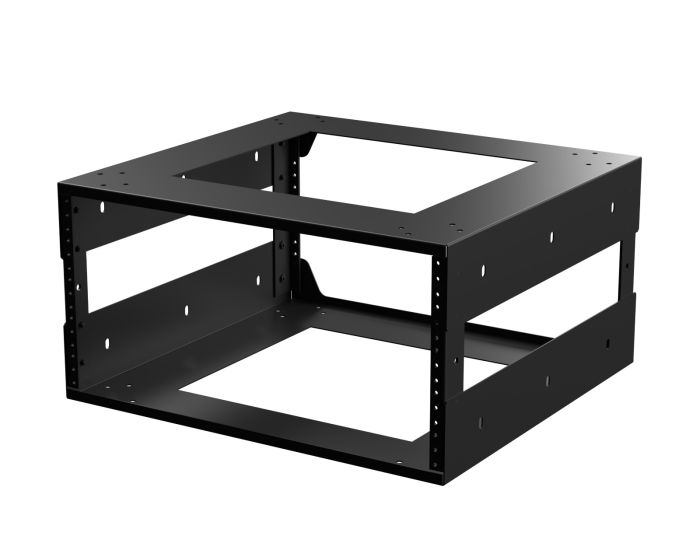

The AVFI Drop-In Rack DIR9200 provides a flexible rack-mounting solution for professional AV equipment. Available in 5U, 8U, 10U, and 12U configurations, these rack cubes can be pre-racked before installation, dropped into a compatible opening on-site, or secured to a wall or flat surface.
The DIR9200 features all-steel construction with a durable black powder-coated finish. Its front rack rails are EIA compliant and threaded for 10-32 rack screws, providing standardized mounting for compatible AV equipment.
A drop-in design allows equipment to be installed in the rack before the rack cube is placed into position, which can simplify field installation. The rack can also be secured through the bottom or side mounting holes for additional installation flexibility.
Large top and bottom cable access openings provide convenient pathways for routing cables through the rack. The DIR9200 ships knocked down with the required hardware and is designed for approximately five-minute assembly, providing a practical solution for organized AV equipment installations.
For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.
Specifications
-
Model: DIR9200-5 / DIR9200-8 / DIR9200-10 / DIR9200-12
-
Product Type: Drop-In Rack
-

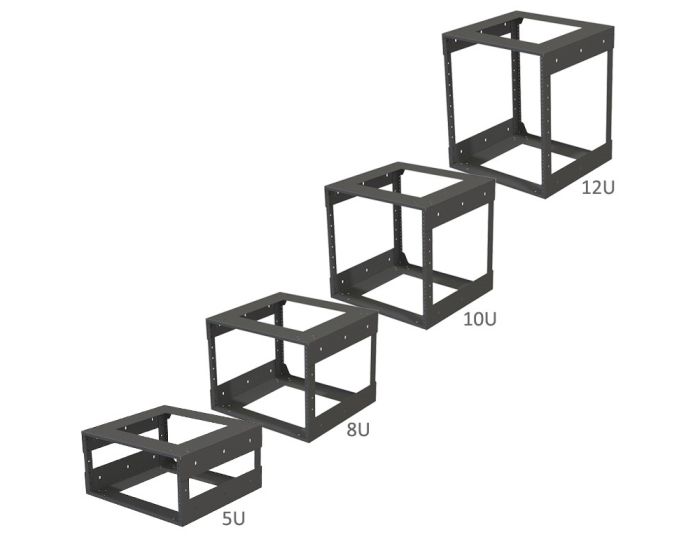

Rack Capacities: 5U, 8U, 10U, and 12U
-
Rack Rail: Front EIA-compliant threaded rack rails
-
Rack Screw Size: 10-32
-
Construction: All steel
-
Cable Access: Large top and bottom cable access openings
-
Installation: Drop-in design; can be pre-racked before installation
-
Mounting: Can be secured through bottom or side holes
-
Assembly: Ships knocked down with hardware; approximately 5-minute assembly
-
Height: 9-7/8" (5U) | 15-1/8" (8U) | 18-5/8" (10U) | 22-1/8" (12U)
-
Width: 19.25"
-
Depth: 18"
-
Finish: Black powder coat
-
Use: Ideal for organizing and mounting AV equipment in professional rack, wall, furniture, and flat-surface installations.
-
Compatibility: Designed for compatible rack-mount AV equipment; confirm the installation space and mounting requirements before ordering.
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
