Description

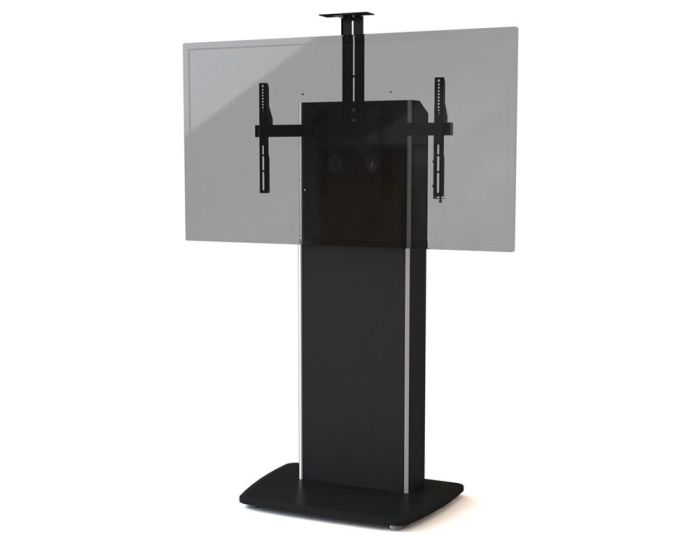

The AVFI Fixed Base Telepresence Stand - TP800 Series is a professional display stand designed for video conferencing, telepresence, and flat panel display applications. Its fixed base configuration provides a stable presentation solution for conference rooms, corporate offices, classrooms, meeting spaces, and other professional AV environments.

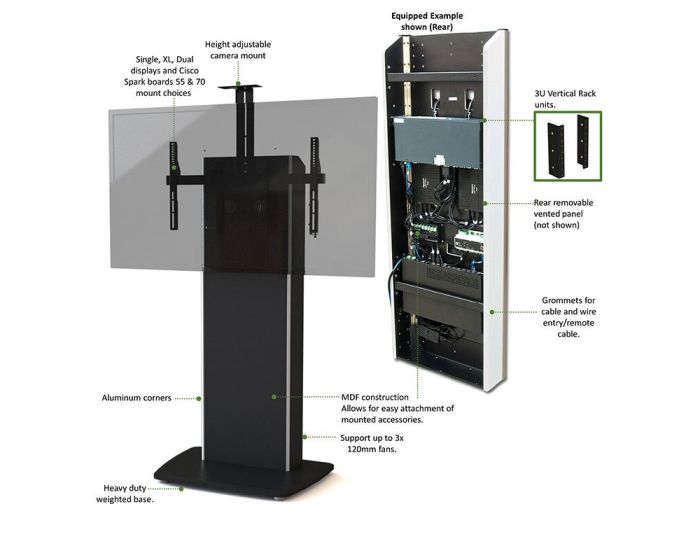

The TP800 features a hollow body designed specifically for rack mounting common video conferencing codecs and accessories. A 3U vertical rack and wiring channel are integrated inside the main pillar, along with a 3U mounted codec basket, electronics shelf, and 6-outlet power bar with a 10-foot cord for organized equipment installation.
The TP800 offers multiple display configurations to accommodate different professional AV setups. The Single configuration supports one 40 to 70-inch display, the XL configuration supports one 65 to 90+ inch display, and the Dual configuration supports two 42 to 70-inch displays. Additional mount choices are available for Cisco Spark Board 55, 70, and 75 displays.
An adjustable TV bracket allows the display height to be set during installation, while the adjustable camera mount supports camera placement above or below the TV. A quiet cooling fan with a vented rear panel supports equipment ventilation. The TP800 features a black laminate finish with durable aluminum corners and supports up to 160 lbs, or 72 kg, of total display weight.
For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.
Related Products / Options
-
BKT-ROOM Room and Quad Camera Bracket: Camera mounting option for compatible conferencing displays.
-
CBB-TV Under TV Camera Bracket: Camera bracket for positioning a compatible camera below the TV.
-
BKT-ST60 Camera Bracket: Camera mounting accessory.
-
BKT-SX20 Cisco SX20 Codec Bracket: Bracket for mounting a Cisco SX20 codec.
-
SBB Cart Sound Bar Bracket: Sound bar mounting accessory.
-
SH-TP-B Front Shelf: Adds an additional work surface to the telepresence stand.
-
RR3 3U Set of Rack Rails: 3U rack rail accessory.
-
PB 6 Outlet 110V Power Bar: Six-outlet power accessory.
-
CUB3 110V Outlet & USB Port Round Cable Well: Power and USB connectivity accessory.
Specifications
-
Model: TP800-S / TP800-XL / TP800-D
-
Product Type: Fixed base telepresence and display stand
-
Display Mount Choices: Single, XL, Dual, CS55, CS70, and CS75
-
Single Display: 1 x 40 to 70-inch display
-
XL Display: 1 x 65 to 90+ inch display
-
Dual Display: 2 x 42 to 70-inch displays
-
CS55: 1 x Cisco Spark Board 55
-
CS70: 1 x Cisco Spark Board 70
-
CS75: 1 x Cisco Spark Board 75
-
TV Bracket: Adjustable height during setup
-
Camera Mount: Adjustable for mounting above or below the TV
-
Rack Capacity: 3U vertical rack
-
Rack Features: Wiring channel, mounted codec basket, and electronics shelf
-
Power: 6-outlet power bar with 10-foot cord
-
Cooling: 1 quiet cooling fan with vented rear panel
-
Display Weight Capacity: 160 lbs / 72 kg total
-
Width: S: 35 inches / XL: 53 inches / D: 84 inches
-
Height: 67 inches
-
Finish: Black laminate with aluminum corners
-
Use: Video conferencing, telepresence, flat panel displays, conference rooms, corporate offices, classrooms, and professional AV environments
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
