Description

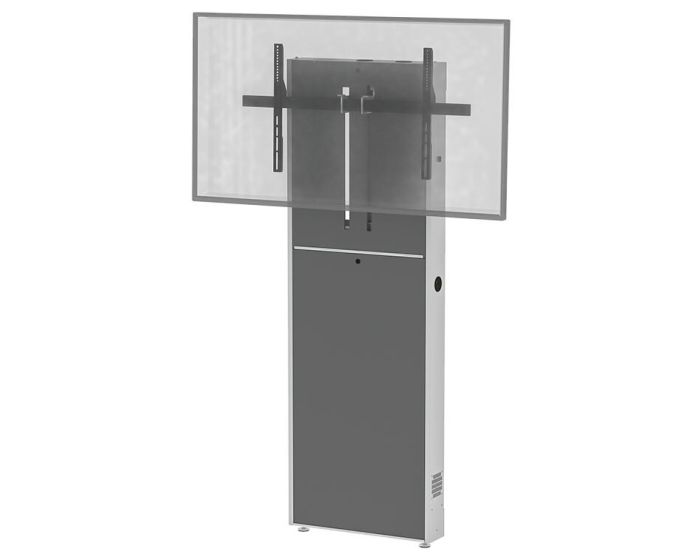

The AVFI Height Adjustable Wall Mounted Lift Stand and Display Mount LFT8800WM-XL is a heavy-duty electric lift system designed for large displays and interactive monitors in offices, boardrooms, conference rooms, and web conferencing environments. Built for single extra-large displays, this wall-mounted lift stand accommodates screens from 65 to 90 inches and supports a maximum display weight of 280 lbs, making it a practical solution for professional audiovisual installations.
Designed with an extended rack area, the LFT8800WM-XL provides 18 inches more rack space than the standard LFT7000WM-XL. Its electric worm-drive actuator offers 20 inches of vertical travel, allowing users to adjust display height with a cable-connected push-button remote. The actuator is designed for controlled, incremental adjustments, supporting flexible viewing positions for presentations, collaboration, and interactive applications.
The stand features a black metal frame with matching black panels and a scratch-resistant powder-coated finish. Removable locking front panels provide access to internal equipment, while the wiring channel inside the main pillar helps organize cables for a cleaner installation. Integrated vertical 3U rack rails offer space for compatible audiovisual equipment and accessories.
For installation stability, the LFT8800WM-XL includes wall-anchoring hardware for stud and masonry walls. The design is intended to transfer the weight of the lift stand and display to the floor, making it suitable for environments where adjustable display positioning and accessibility are important. Proper installation and secure fastening to a stud or masonry wall are required.
The LFT8800WM-XL also supports optional camera brackets, cooling, power, and rack accessories to help configure a complete display system. With its extended rack area, electric height adjustment, and concealed equipment storage, this AVFI lift stand is suited to professional meeting spaces, collaborative environments, and large-format interactive display installations.
Options:
-
TVCB-XL: Camera Bracket for 56-90in TVs
-
BKT-ROOM: Room and Quad Camera Bracket
-
CBB-TV: Under TV Camera Bracket for 26-80in TVs
-
FAN: 120mm AC Cooling Fan
-
PB: 6-Outlet 110V Power Bar
-
RR3: 3U Set of Rack Rails
Specifications
-
Brand: Audio Visual Furniture International (AVFI)
-
Model: LFT8800WM-XL
-
Product Type: Height Adjustable Wall Mounted Lift Stand and Display Mount
-
Configuration: Single XL display
-
Display Size: 65-90 inches
-
Maximum Display Weight: 280 lbs
-
Maximum VESA Mounting Pattern: 1100 x 650 mm
-
Height Adjustment: 20 inches of electric travel
-
Actuator: Electric worm-drive actuator
-
Control: Cable-connected push-button remote for incremental height adjustment
-
Rack Space: Internal vertical 3U rack rails
-
Rack Area: 18 inches taller than the standard LFT7000WM-XL
-
Access Panels: Removable locking front panels
-
Cable Management: Internal wiring channel inside the main pillar
-
Installation: Requires secure fastening to a stud or masonry wall
-
Wall Anchoring Hardware: Included for masonry and stud walls
-
Frame: Black metal
-
Panel Color: Black
-
Finish: Scratch-resistant powder coat
-
Width: 45 inches
-
Depth: 9 inches
-
Height: 88 inches
-
Estimated Lead Time: Ships within 1-15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
