Description

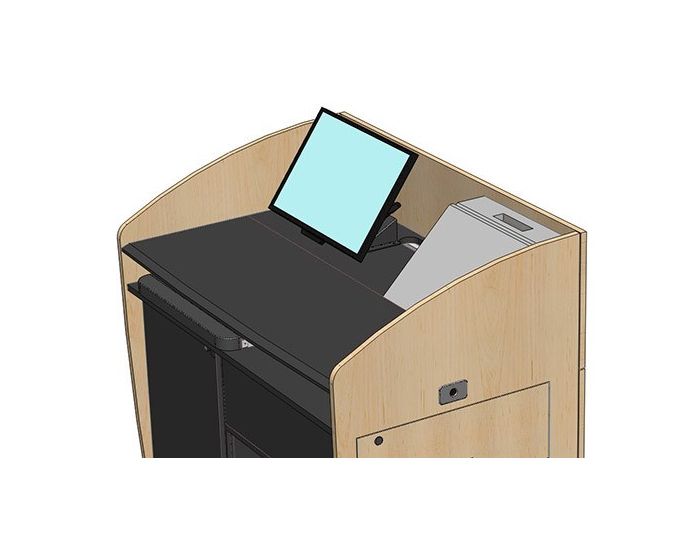

The AVFI LCD Monitor Mount PLM1022 is designed for mounting LCD monitors to podium and lectern surfaces, providing presenters with a comfortable viewing position while standing. Its adjustable design allows the display to be positioned according to the user's preferred viewing angle and screen size.

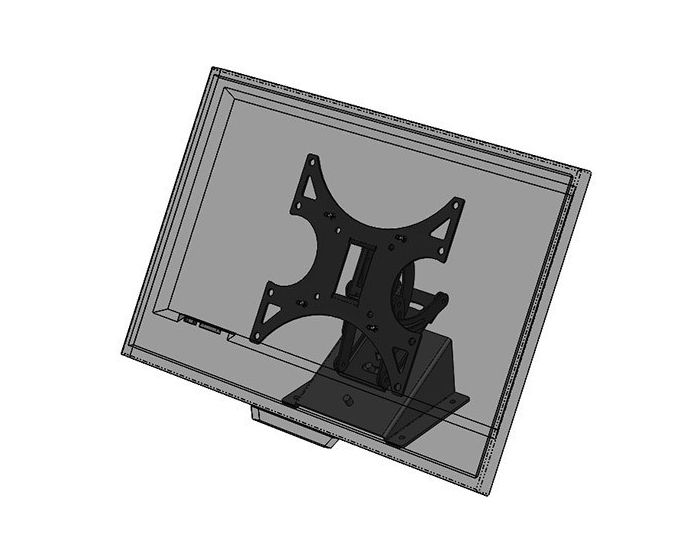

The PLM1022 features a standard mounting plate compatible with 75x75, 100x100, 200x100, and 200x200 mm VESA mounting patterns. It is designed to accommodate most 10" to 24" LCD monitors, providing a versatile mounting solution for compatible presentation displays.

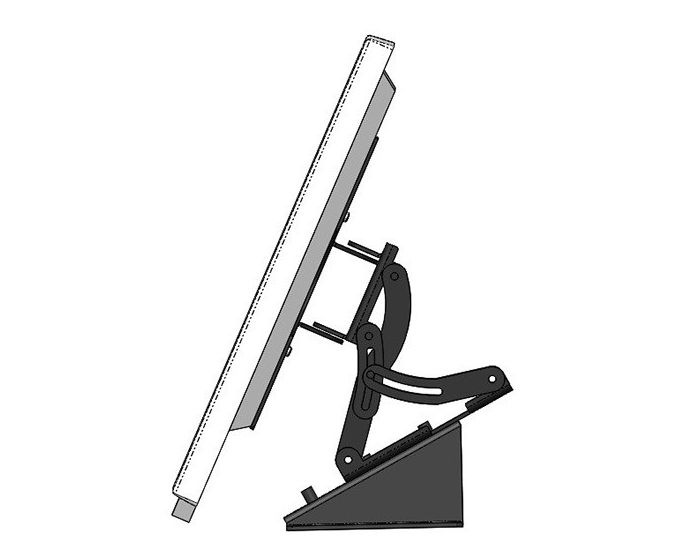

The mount offers adjustment in three dimensions, including ±30° swivel and up to ±15° tilt, allowing presenters to position the monitor for improved visibility. Two height positions provide additional flexibility for accommodating different screen sizes and viewing angles.
The PLM1022 can extend from a minimum distance of 3.3 inches from the wall or mounting surface to a maximum of 5.8 inches, providing additional positioning flexibility. The bracket requires a flat surface for installation and features a durable black finish.
For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.
Specifications
-
Model: PLM1022
-
Product Type: LCD Monitor Mount
-
Applications: Podiums and lecterns
-
Width: 8.5"
-
Depth: 8.5"
-
Height: 6"
-
Color: Black
-
Compatible Monitor Size: Most 10"–24" LCD monitors
-
VESA Mounting Patterns: 75x75, 100x100, 200x100, and 200x200 mm
-
Swivel Adjustment: ±30°
-
Tilt Adjustment: Up to ±15°
-
Height Positions: 2
-
Extension Range: 3.3" minimum to 5.8" maximum from mounting surface
-
Installation Requirement: Flat surface required
-
Mounting Plate: Standard VESA mounting plate
-
Use: Provides adjustable LCD monitor positioning for standing presenters using compatible AVFI podiums and lecterns.
-
Compatibility: Designed for compatible AVFI podium and lectern surfaces and monitors within the specified size and VESA requirements.
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
-
Made in USA: Manufactured by Audio Visual Furniture International in the United States.
