Description

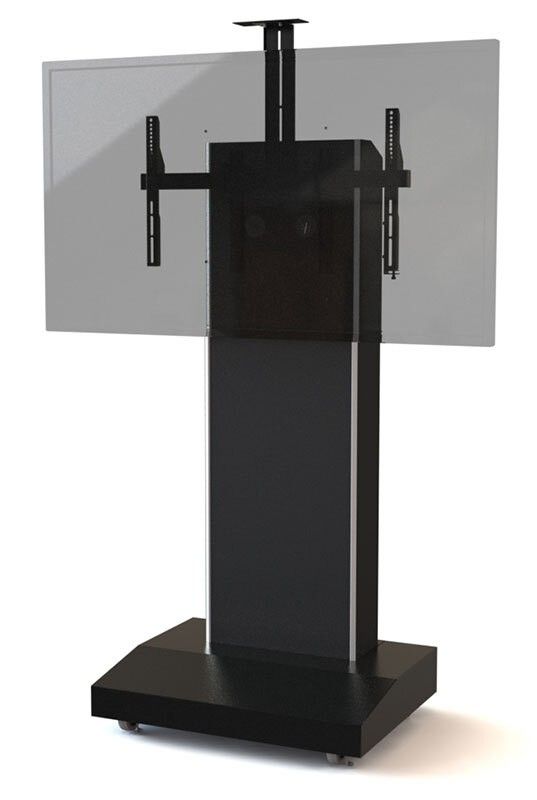

The AVFI Mobile Telepresence Stand - TP1000 Series is a versatile mobile display stand designed for video conferencing, telepresence, and flat panel display applications. It is suitable for boardrooms, corporate offices, legal firms, classrooms, and other professional environments requiring a flexible display and conferencing solution.

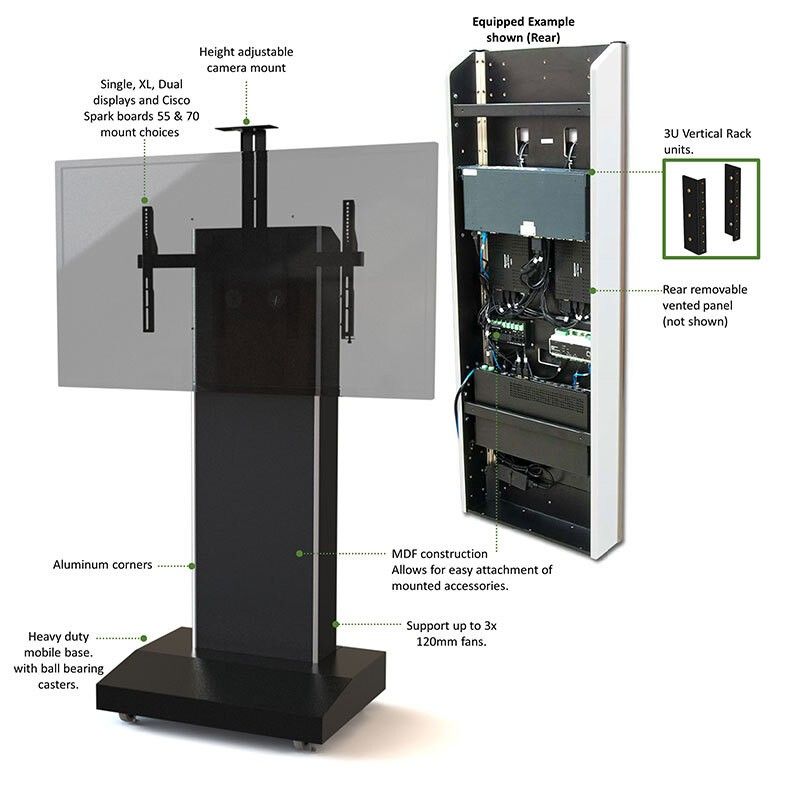

The TP1000 features a hollow main body optimized for rack mounting common video conferencing codecs and accessories. It includes a 3U vertical rack and wiring channel inside the main pillar, along with a 3U mounted codec basket, electronics shelf, and 6-outlet power bar with a 10-foot cord mounted inside the stand.

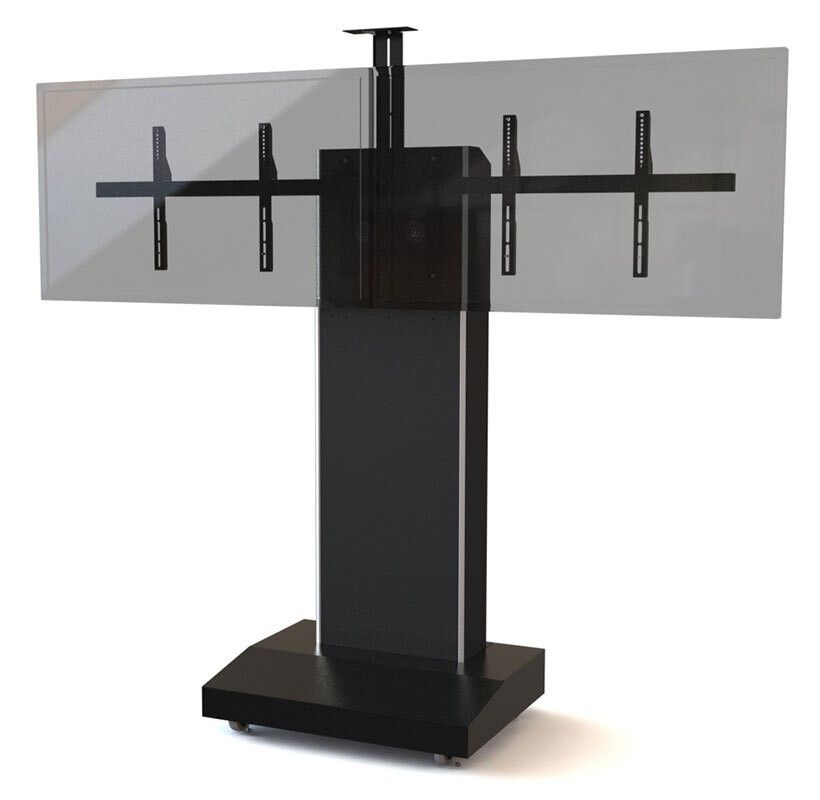

Multiple display mount configurations provide flexibility for different room setups. The Single configuration supports one 40 to 70-inch display, the XL configuration supports one 65 to 90+ inch display, and the Dual configuration supports two 42 to 70-inch displays. Additional mount choices are available for Cisco Spark Board 55, 70, and 75 displays.
The TP1000 includes an adjustable TV bracket height and an adjustable camera mount for positioning cameras above or below the display. Four-inch heavy-duty ball bearing casters with non-marking wheels provide mobility, while a quiet cooling fan and vented rear panel help support equipment ventilation. The stand features a black laminate finish with aluminum corners and supports up to 160 lbs, or 72 kg, of total display weight.
For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.
Related Products / Options
-
BKT-ROOM Room and Quad Camera Bracket: Camera mounting option for compatible conferencing displays.
-
BKT-ST60 Camera Bracket: Camera mounting accessory.
-
BKT-SX20 Cisco SX20 Codec Bracket: Bracket for mounting a Cisco SX20 codec.
-
CBB-TV Under TV Camera Bracket: Camera bracket designed for placement below compatible TVs.
-
SBB Cart Sound Bar Bracket: Sound bar mounting accessory.
-
SH-TP-B Front Shelf: Adds an additional work surface to the TP1000 stand.
-
PB 6 Outlet 110V Power Bar: Six-outlet power accessory.
-
RR3 3U Set of Rack Rails: 3U rack rail accessory.
-
CUB3 110V Outlet & USB Port Round Cable Well: Power and USB connectivity accessory.
Specifications
-
Model: TP1000-S / TP1000-XL / TP1000-D
-
Product Type: Mobile telepresence and display stand
-
Display Mount Choices: Single, XL, Dual, CS55, CS70, and CS75
-
Single Display: 1 x 40 to 70-inch display
-
XL Display: 1 x 65 to 90+ inch display
-
Dual Display: 2 x 42 to 70-inch displays
-
CS55: 1 x Cisco Spark Board 55
-
CS70: 1 x Cisco Spark Board 70
-
CS75: 1 x Cisco Spark Board 75
-
TV Bracket: Adjustable height during setup
-
Camera Mount: Adjustable for mounting above or below the TV
-
Rack Capacity: 3U vertical rack
-
Rack Features: Wiring channel, mounted codec basket, and electronics shelf
-
Power: 6-outlet power bar with 10-foot cord
-
Cooling: 1 quiet cooling fan with vented rear panel
-
Casters: 4-inch heavy-duty ball bearing casters with non-marking wheels
-
Display Weight Capacity: 160 lbs / 72 kg total
-
Width: S: 35 inches / XL: 53 inches / D: 84 inches
-
Depth: 26.75 inches
-
Height: 70.50 inches
-
Finish: Black laminate with aluminum corners
-
Use: Video conferencing, telepresence, flat panel displays, boardrooms, corporate offices, legal firms, classrooms, and professional AV environments
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
