Description

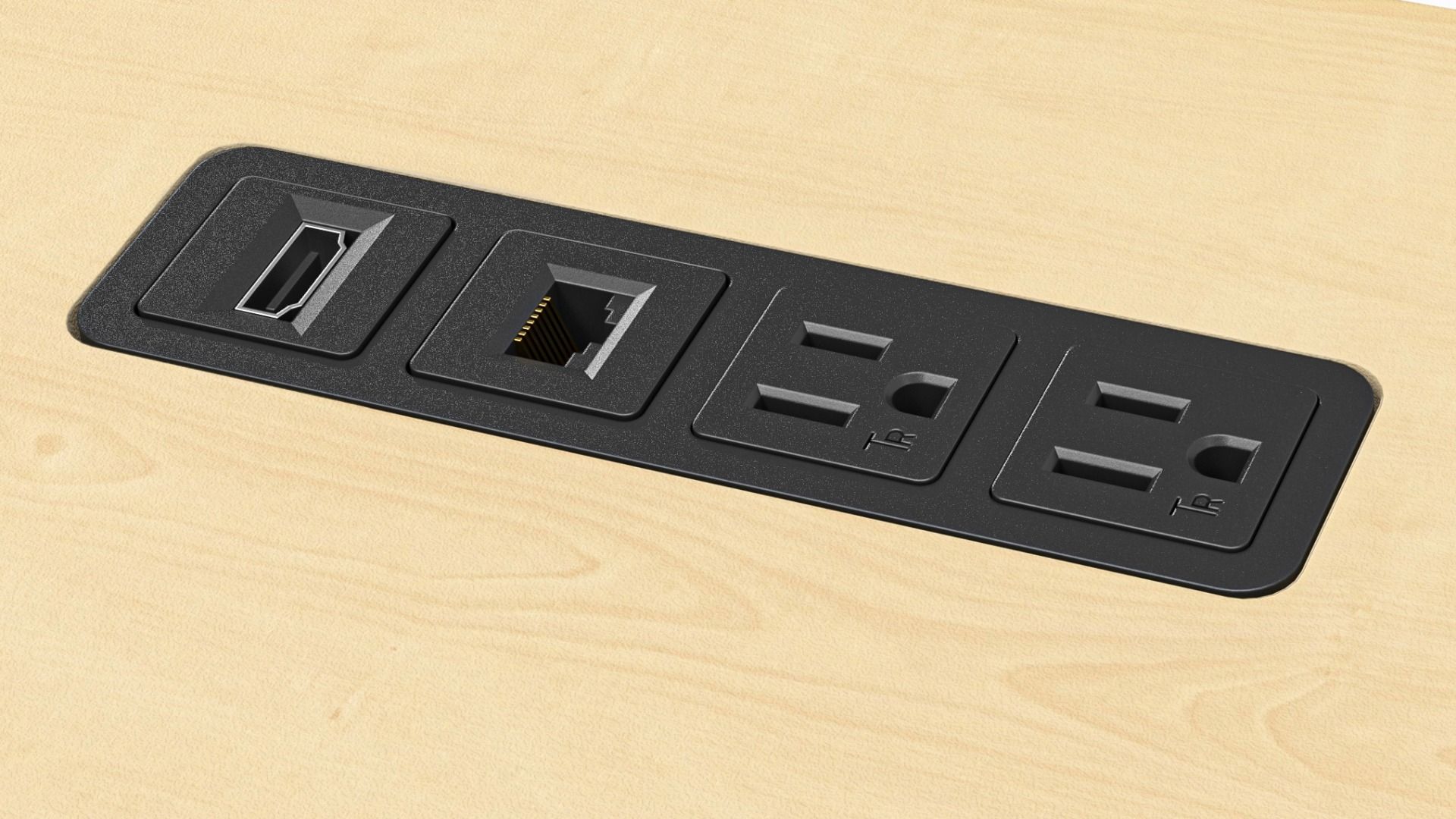

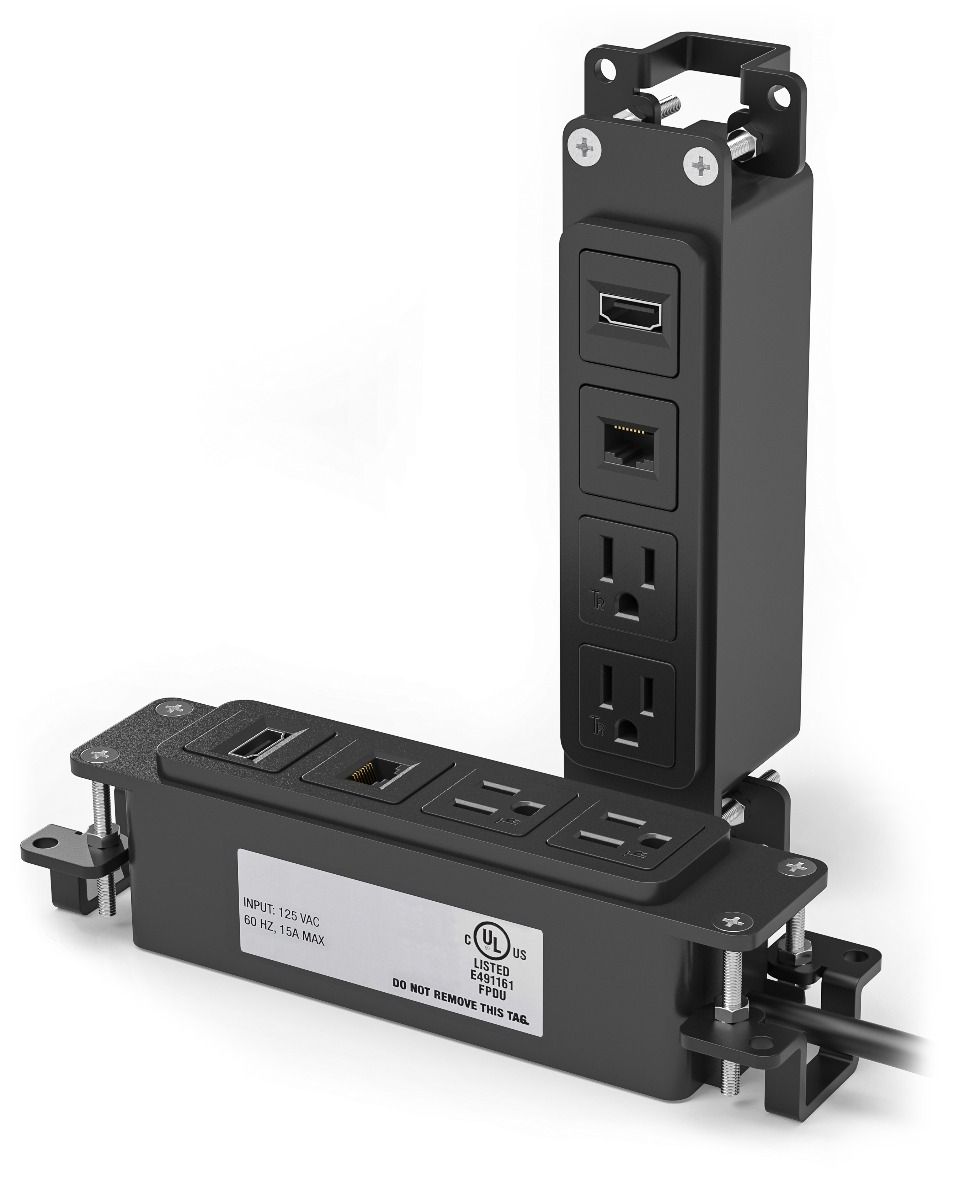

The AVFI Power and Data Panel 4 Connections – CUBM4 is a compact power and connectivity solution designed to provide convenient access to electrical power, network connectivity, and HDMI connections directly from compatible tables, podiums, desks, and other worksurfaces. Its low-profile design with a flush-mounted bezel provides a clean, professional appearance while keeping essential connections easily accessible.
The CUBM4 features four integrated connection modules, including two tamper-resistant 125V 15A AC outlets, one CAT 6 network connection with pigtail, and one HDMI connection. This combination provides convenient access to power, network, and audiovisual connectivity for laptops, displays, presentation equipment, and other compatible devices.
Designed for professional AV and workspace installations, the CUBM4 includes a 6-foot side-exiting power cord with a low-profile flat 45° angle 120 VAC plug. Its black ABS construction provides a durable and discreet appearance that integrates well into compatible furniture and worksurfaces.
The panel requires precision top and bottom cuts/routs for proper installation. AVFI recommends ordering panels pre-cut to help ensure proper fitting. The CUBM4 is UL Listed for mounting in furniture, making it suitable for compatible commercial and professional furniture applications.
For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.
Specifications
-
Model: CUBM4
-
Product Type: Power and Data Panel – 4 Connections
-
Configuration: 4 modules
-
AC Outlets: 2x tamper-resistant 125V 15A AC outlets
-
Network Connection: 1x CAT 6 port with pigtail
-
HDMI: 1x HDMI
-
Power Cord: 6 ft. side-exiting power cord
-
Plug: Low-profile flat 45° angle 120 VAC plug
-
Construction: Black ABS
-
Color: Black
-
Mounting: Flush-mounted bezel
-
Design: Compact low-profile design
-
Top Cutout: 1.43" x 5.15" (top rout)
-
Bottom Cutout: 1.65" x 6.89" (bottom rout)
-
Installation Requirement: Precision top and bottom cuts/routs required
-
Installation Recommendation: AVFI highly recommends ordering panels pre-cut from AVFI for proper fitting
-
Certification: UL Listed for mounting in furniture
-
Use: Designed for tables, podiums, worksurfaces, desks, and other compatible AV furniture requiring convenient power, network, and HDMI connectivity
-
Compatibility: Check the specific AVFI product and worksurface configuration for compatibility before ordering
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
-
Made in USA: Manufactured by Audio Visual Furniture International in the United States.
