Description

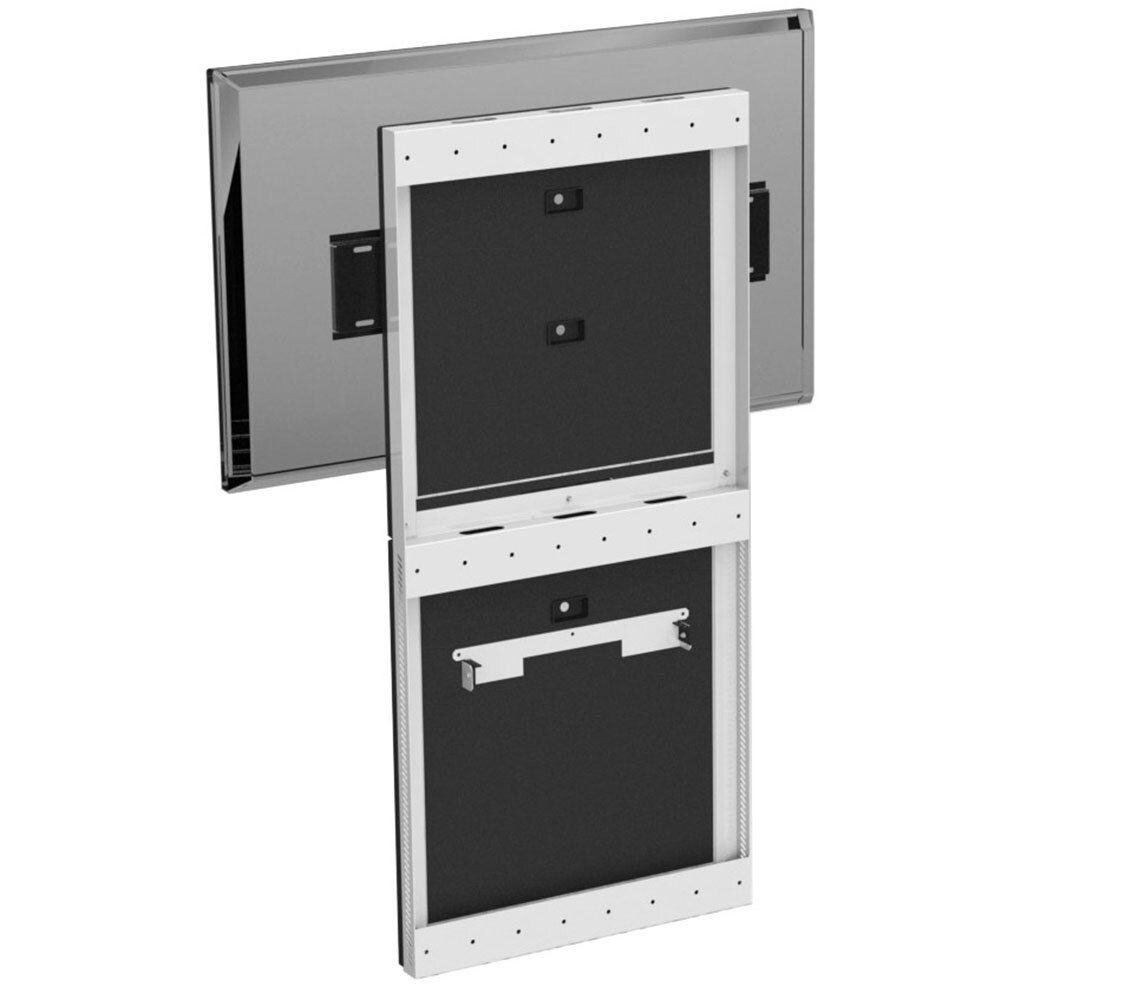

The AVFI TP200-WM Single Monitor Mount Wall Offset Stand is a compact wall-mounted display solution designed for single monitor and commercial display installations. Its steel and furniture-grade laminate construction combines display support, equipment storage, ventilation, and cable management in a streamlined design that keeps AV equipment organized and accessible outside the wall.

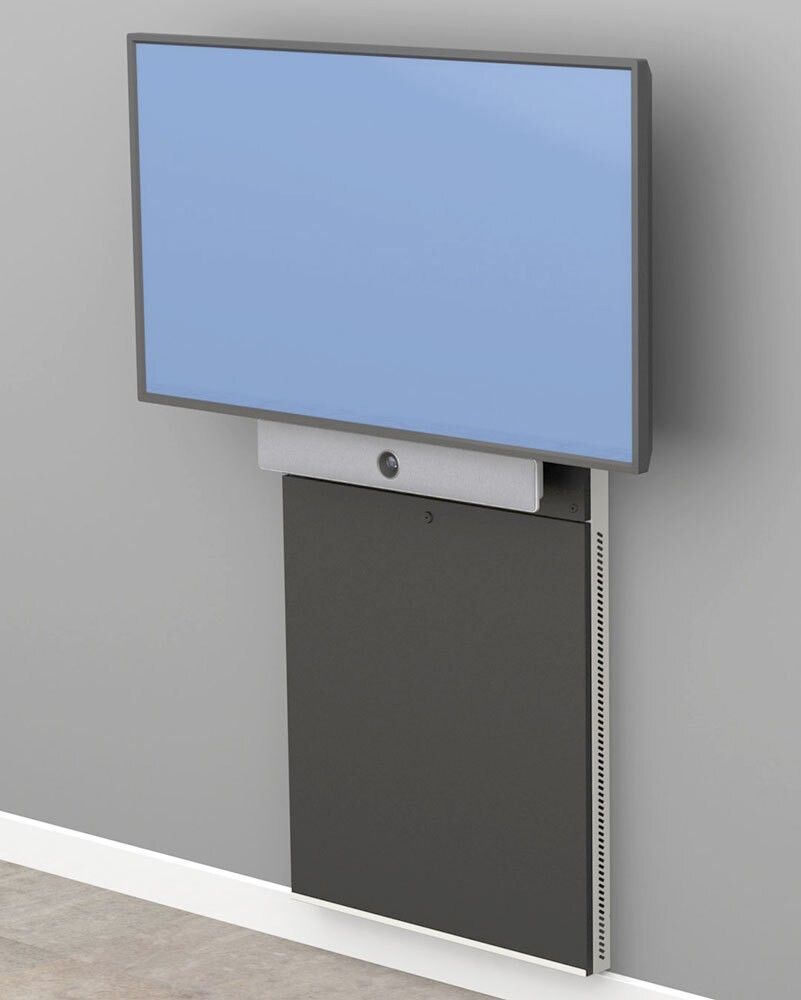

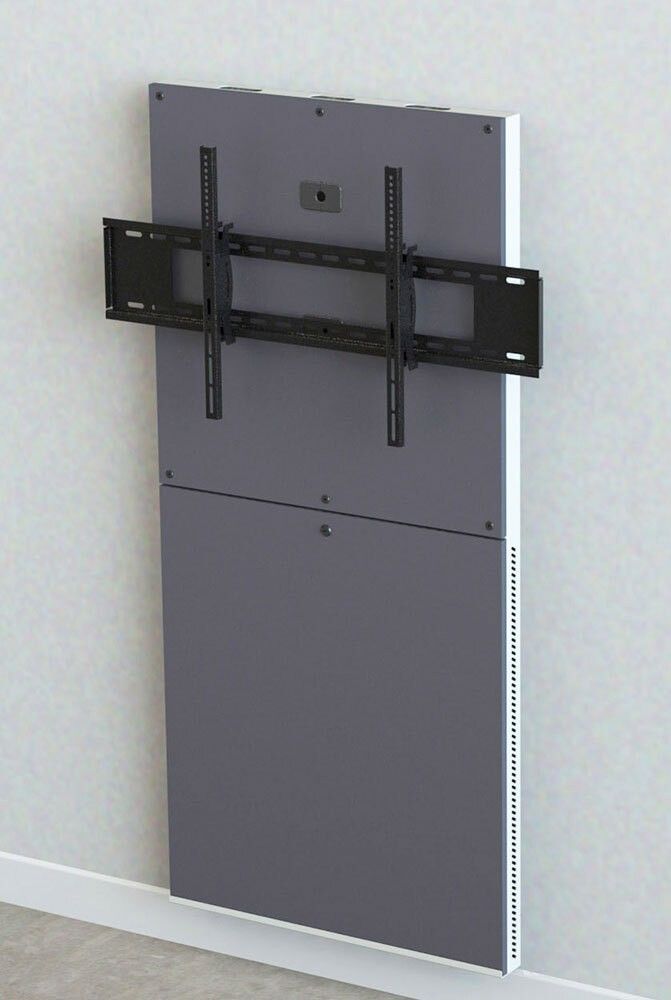

The TP200-WM accommodates 40" to 80" displays weighing up to 160 lbs, with mounting hole spacing up to 900mm wide x 500mm high. An adjustable display mounting system allows the TV height to be positioned during installation, making it easier to achieve the desired viewing height for different environments.
A built-in wiring channel inside the main pillar provides organized cable routing, while the integrated 1U vertical rack provides space for compatible AV equipment. Vented sides and a vented top promote airflow around installed components, and the locking bottom panel door provides secure access to the equipment compartment.
The TP200-WM features a black laminate panel with a grey metal frame and is compatible with AVFI tables and bridges. Its shallow 2-3/4" depth helps maintain a clean profile against the wall, making it suitable for conference rooms, classrooms, video conferencing spaces, and other professional AV environments.
Options:
-
BKT-ROOM: Room and Quad Camera Bracket
-
TVCB: Camera Bracket for 32" to 55" TVs
-
TVCB-XL: Camera Bracket for 56" to 90" TVs
-
BKT-SX20: Cisco SX20 Codec Bracket
-
CS: Camera/Codec Shelf, Wall Mounted
-
PB: 6-Outlet 110V Power Bar
Specifications
-
Model: TP200-WM
-
Product Type: Wall Offset Stand for Single Monitor Applications
-
Display Compatibility: 40" to 80" displays
-
Maximum Display Weight: 160 lbs
-
Maximum Mounting Hole Spacing: 900mm wide x 500mm high
-
Width: 30"
-
Depth: 2-3/4"
-
Height: 65-1/8"
-
Rack Capacity: 1U vertical rack
-
Construction: Steel and furniture-grade laminate
-
Display Adjustment: Adjustable TV height during setup
-
Cable Management: Wiring channel inside main pillar
-
Ventilation: Vented sides and top
-
Access: Locking bottom panel door
-
Color: Black laminate panel with grey metal frame
-

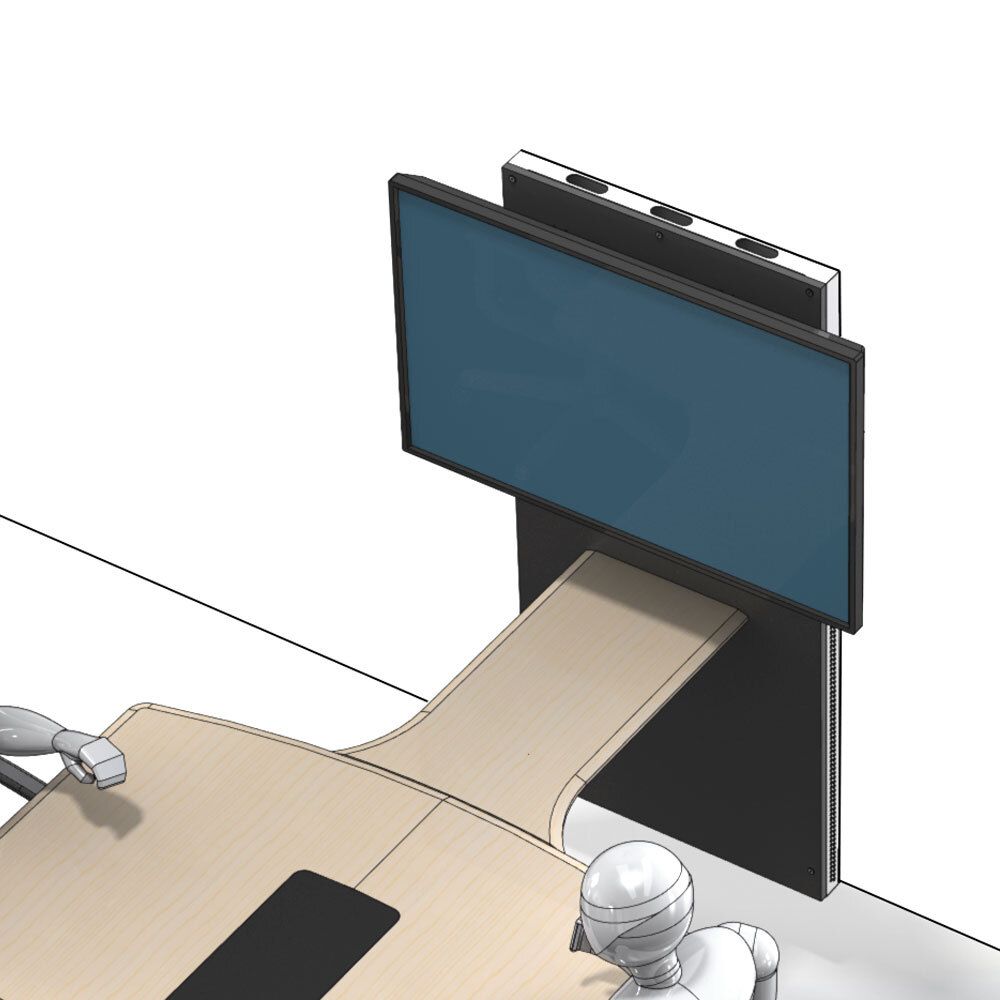

Compatibility: Compatible with AVFI tables and bridges
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
