Description

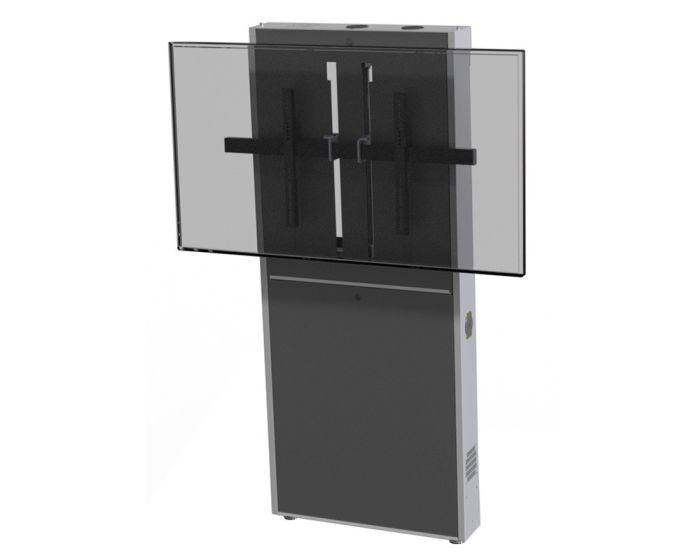

The AVFI LFT7000WM Wall Mounted Height Adjustable Stand is a heavy-duty display mounting solution designed for offices, boardrooms, web conferences, classrooms, and professional environments requiring adjustable display positioning or ADA compliance. Its wall-anchored design provides stable support for single, XL, and dual display configurations while minimizing the floor footprint.

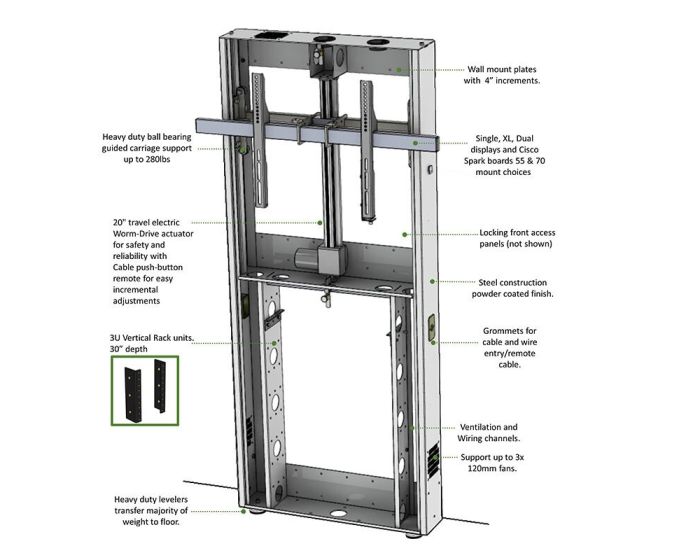

The LFT7000WM uses a 20" travel electric worm-drive actuator for reliable height adjustment and a cable push-button remote for convenient incremental positioning. It supports single displays from 40" to 70", XL displays from 65" to 90+", and dual displays from 42" to 70". Cisco Spark Board configurations for 55", 70", and 75" displays are also supported.
A concealed 3U vertical rack provides organized space for compatible AV equipment, while removable locking front panels provide access to the equipment and wiring. The internal wiring channel helps keep cables organized, and the 30" deep rack structure provides space for integrated AV components.
Designed for secure wall installation, the LFT7000WM must be fastened to a stud or masonry wall. Heavy-duty levelers help compensate for uneven floors, while the light grey metal frame, Shark Grey-SGT panels, and scratch-resistant powder coat finish provide a professional appearance suitable for commercial environments.
With support for displays weighing up to 280 lbs, the LFT7000WM provides a robust height-adjustable mounting solution for presentation, collaboration, and video conferencing applications. Optional camera brackets, power, cooling, and rack accessories provide additional configuration flexibility.
Options:
-
TVCB: Camera Bracket for 32" to 55" TVs
-
TVCB-XL: Camera Bracket for 56" to 90" TVs
-
BKT-ROOM: Room and Quad Camera Bracket
-
CBB-TV: Under TV Camera Bracket for 26" to 80" TVs
-
PB: 6-Outlet 110V Power Bar
-
FAN: 120mm AC Cooling Fan
-
RR3: 3U Set of Rack Rails
-
LFT7000 Series: Mobile Lift Stand for Single/Dual Monitors
Specifications
-
Models: LFT7000WM-S, LFT7000WM-XL, LFT7000WM-D
-
Display Configurations: Single, XL, Dual, CS55, CS70, CS75
-
Single Display: 1x 40" to 70" display
-
XL Display: 1x 65" to 90+" display
-
Dual Display: 2x 42" to 70" displays
-
Cisco Display Options: 1x Cisco Spark Board 55, 70, or 75
-
Display Weight Capacity: 280 lbs (127 kg) total
-
Width: S: 35", XL: 53", D: 84"
-
Depth: 8.5" + TV
-
Height: 72"
-
Height Adjustment: 20" electric travel
-
Actuator: Electric worm-drive actuator
-
Control: Cable push-button remote
-
Rack Capacity: 3U vertical rack
-
Cable Management: Internal wiring channel inside main pillar
-
Access: Removable locking front panels
-
Leveling: Heavy-duty levelers for uneven floors
-
Installation: Requires fastening to a stud or masonry wall
-
Frame Color: Light grey metal
-
Panel Color: Shark Grey-SGT
-
Finish: Scratch-resistant powder coat
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
