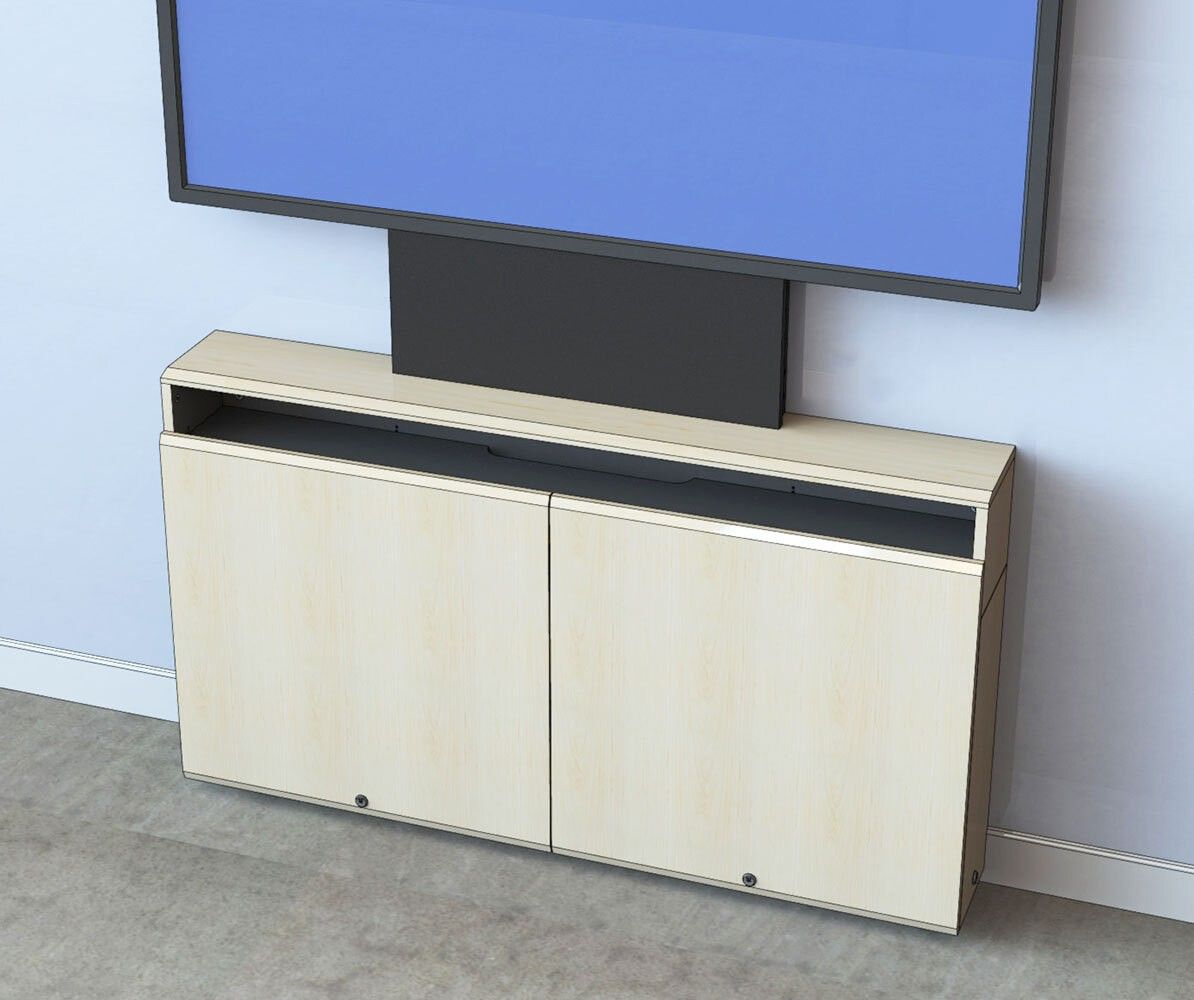

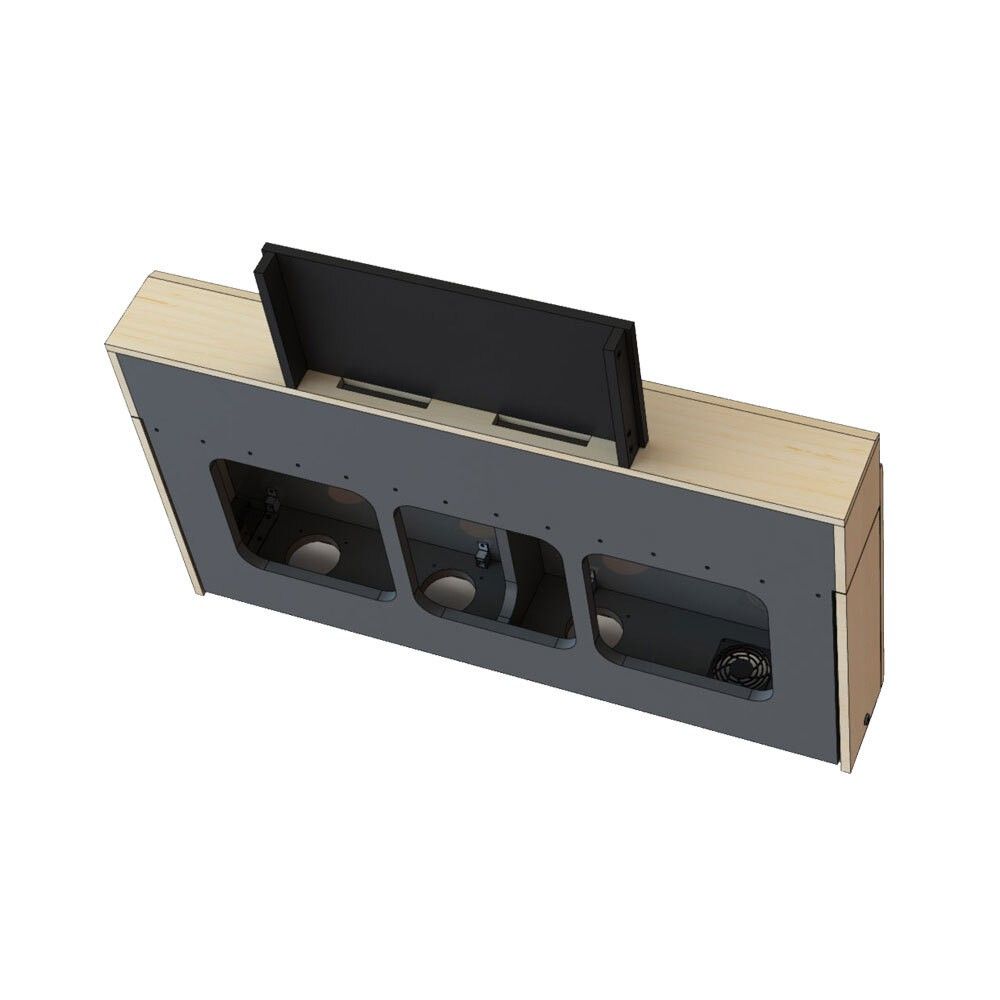

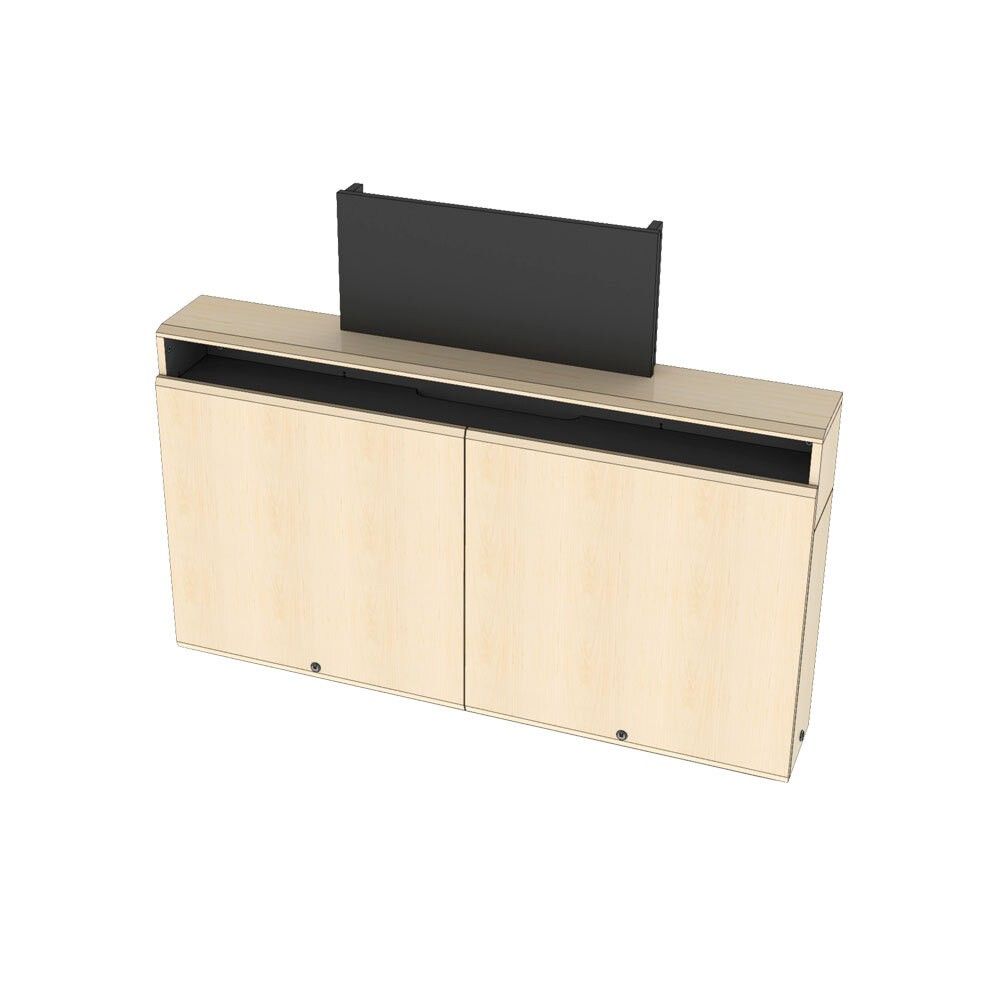

AVFI Dual Rack Wall Mounted Credenza + Cable Channel - CR2-WM-CM

Description

The AVFI Dual Rack Wall Mounted Credenza + Cable Channel – CR2-WM-CM is a space-saving AV furniture solution designed to organize and conceal professional audio, video, networking, and electronic equipment below wall-mounted displays. Its wall-secured design is less than 9 inches deep, making it ideal for high-traffic areas, hallways, conference rooms, and installations where space efficiency and ADA compliance are important considerations.

The CR2-WM-CM features two rack bays with 3U rack rails mounted sideways in each bay, providing 6U of total rack capacity for compatible equipment. Lift-off locking front panels and locking side doors provide convenient access to racks, wiring, and electronics while helping maintain a clean, organized installation.

A built-in height-adjustable sound bar shelf provides dedicated space for audio integration and accommodates sound bars up to 54"W x 6"D x 6.5"H. The top-mounted cable management channel measures 26.75"W x 12"H x 2.75"D and helps conceal cables running between the credenza and wall-mounted displays. The cable channel is available in black only.

Constructed with a highly resistant thermowrap surface available in many colors, the CR2-WM-CM combines durability with a professional appearance. Top and bottom ventilation is included, with the option to add up to four cooling fans. The credenza ships fully assembled and is compatible with AVFI tables with or without bridges.

For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.

Specifications

• Model: CR2-WM-CM

• Product Type: Dual Rack Wall Mounted Credenza with Cable Channel

• Width: 56"

• Depth: 8.75"

• Height: 44.5"

• Rack Capacity: 6U total

• Rack Rails: RR3 3U rack rails per side

• Rack Rail Depth: 25"

• Mounting: Secures to wall

• Sound Bar Shelf: Height adjustable

• Maximum Sound Bar Dimensions: 54"W x 6"D x 6.5"H

• Cable Management Channel: 26.75"W x 12"H x 2.75"D

• Cable Channel Finish: Black only

• Surface: Highly resistant thermowrap

• Finish Options: Available in multiple thermowrap colors

• Front Access: Lift-off locking front panels

• Side Access: Locking side doors

• Ventilation: Vents at the top and bottom

• Cooling Options: Supports up to 4 optional fans

• ADA Application: Adds ADA compliance when placed below a wall-hanging TV up to 65"

• Assembly: Ships assembled

• Compatibility: Compatible with AVFI tables with or without bridges

• Use: Ideal for organizing AV equipment below wall-mounted displays in conference rooms, high-traffic areas, hallways, and other professional AV environments

• Options: 6 Outlet 110V Power Bar (PB); TVCB Camera Bracket for 32–55" TVs; CS Camera/Codec Shelf (Wall Mounted); FAN 120mm AC Cooling Fan; 9107 19in Lacing Bar 1U; WM-3755 32–65in Tilt Wall Mount; CR3-WM-CM Triple Rack Wall Mounted Credenza + Cable Channel

• Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.

• Made in USA: Manufactured by Audio Visual Furniture International in the United States.
