AVFI Triple Rack Wall Mounted Credenza + Cable Channel - CR3-WM-CM

Description

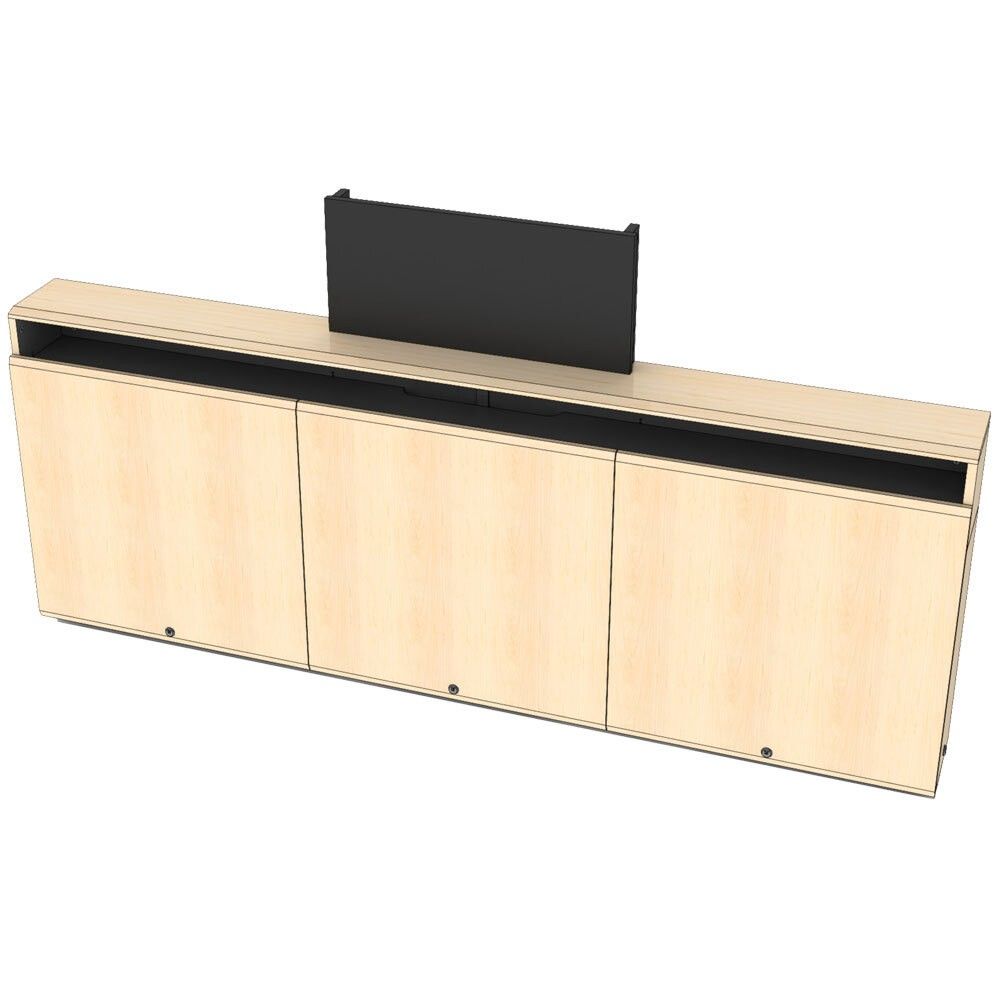

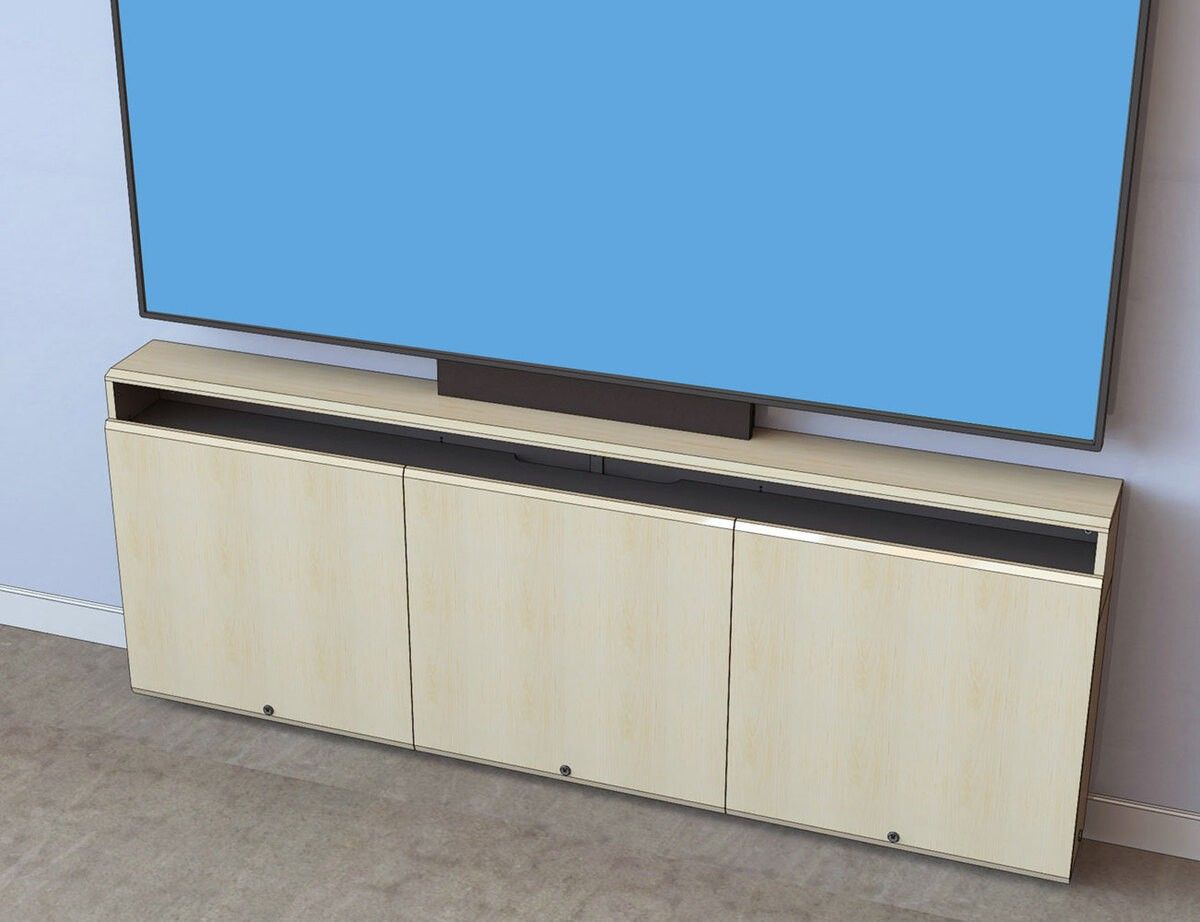

The AVFI Triple Rack Wall Mounted Credenza + Cable Channel – CR3-WM-CM is a space-saving AV furniture solution designed to organize professional audio, video, networking, and electronic equipment below large wall-mounted displays. With a wall-secured design measuring less than 9 inches deep, it helps maximize floor space while supporting ADA-compliant installations beneath wall-mounted TVs from 70" to 90".

The CR3-WM-CM features three rack bays with 3U rack rails mounted sideways, providing 6U total rack capacity with 25-inch-deep rack space. Lift-off locking front panels provide access to racks and wiring, while locking side doors allow convenient access to the front of rack-mounted equipment.

A built-in height-adjustable sound bar shelf provides dedicated space for audio integration and accommodates sound bars up to 82"W x 6"D x 6.5"H. The top-mounted cable management channel helps conceal cables running to a wall-mounted TV and measures 26.75"W x 12"H x 2.75"D. The cable channel is available in black only.

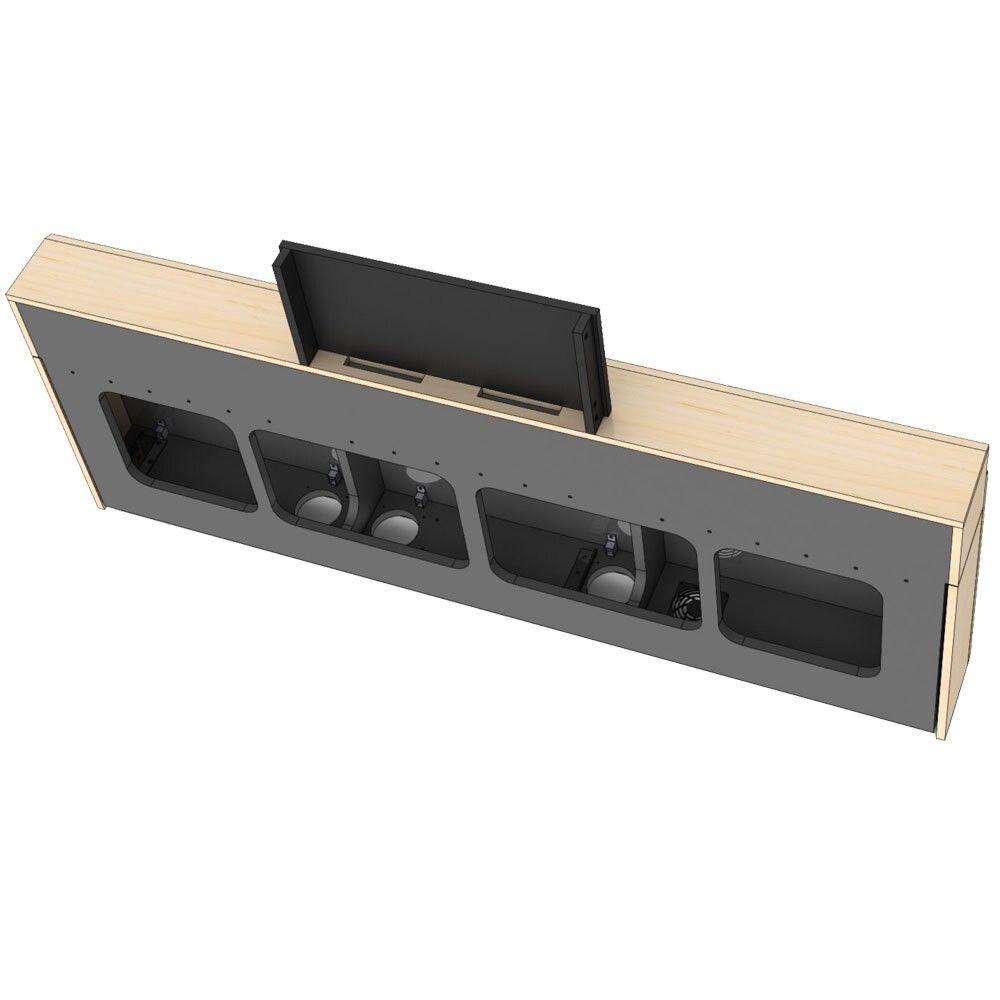

The CR3-WM-CM features a highly resistant thermowrap surface available in many colors, combined with matching beveled doors and precision European hardware for a professional appearance. Top and bottom ventilation helps support equipment airflow, with the option to add up to four cooling fans. The credenza ships assembled and is compatible with AVFI tables with or without bridges.

For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.

Specifications

• Model: CR3-WM-CM

• Product Type: Triple Rack Wall Mounted Credenza with Cable Channel

• Width: 84"

• Depth: 8.75"

• Height: 44.5"

• Rack Configuration: Triple rack credenza

• Rack Rails: RR3 3U rack rails per side

• Rack Capacity: 6U total

• Rack Rail Depth: 25"

• Mounting: Secures to wall

• Sound Bar Shelf: Height adjustable

• Maximum Sound Bar Dimensions: 82"W x 6"D x 6.5"H

• Cable Management Channel: 26.75"W x 12"H x 2.75"D

• Cable Channel Finish: Black only

• Surface: Highly resistant thermowrap

• Finish Options: Available in many thermowrap colors

• Doors: Matching beveled doors

• Front Access: Lift-off locking front panels for access to racks and wiring

• Side Access: Locking side doors for access to rack units

• Ventilation: Vents at the top and bottom

• Cooling Options: Supports up to 4 optional fans

• ADA Application: Adds ADA compliance when placed below a wall-hanging 70" to 90" TV

• Assembly: Ships assembled

• Compatibility: Compatible with AVFI tables with or without bridges

• Use: Ideal for conference rooms, high-traffic areas, hallways, and professional AV environments requiring organized equipment storage below large wall-mounted displays

• Options: 6 Outlet 110V Power Bar (PB); TVCB Camera Bracket for 32–55" TVs; CS Camera/Codec Shelf (Wall Mounted); FAN 120mm AC Cooling Fan; 9107 19in Lacing Bar 1U; WM-3755 32–65in Tilt Wall Mount; CR2-WM-CM Dual Rack Wall Mounted Credenza + Cable Channel

• Compatibility: Check the specific AVFI product and configuration for accessory compatibility before ordering

• Custom Cutouts: Custom cutouts may be available for this product. Final specifications and approval of drawings may be required before production. When applicable, AVFI estimates shipment within 20 business days after receipt of the purchase order and signed drawings. Transit time is additional.

• Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.

• Made in USA: Manufactured by Audio Visual Furniture International in the United States.
