Description
The AVFI Large Single 60-90" Display Mount PM2-XL is designed for large single-display video conferencing and presentation systems. Built for table-height installations, the mount integrates with a fixed credenza or compatible AVFI monitor cart to create a secure portable roll-about video system. A camera and codec shelf is included for convenient placement of compatible conferencing equipment.
The PM2-XL accommodates most 60" to 90" displays weighing up to 200 lbs. and supports VESA mounting patterns up to 1100 x 650 mm. The adjustable TV bracket height allows the display to be positioned during setup, while the adjustable camera mount provides flexibility for positioning conferencing equipment at the appropriate height.

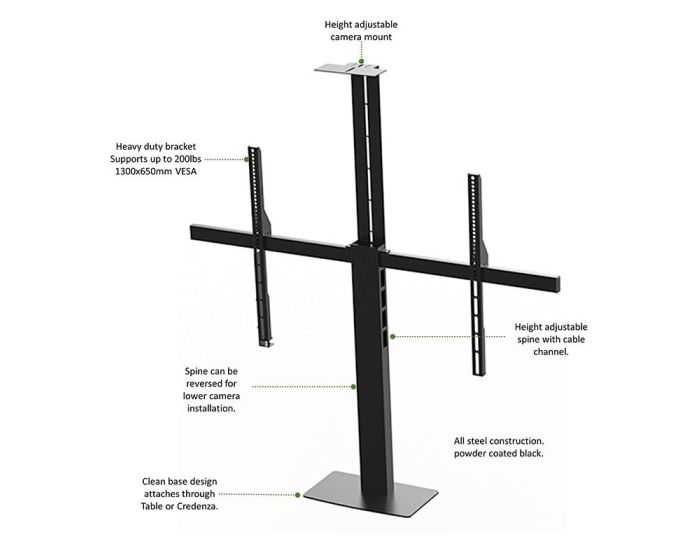

Constructed from sturdy 11-gauge steel, the PM2-XL features a scratch-resistant powder coat finish for durability in professional AV environments. The main pillar includes a hidden wiring channel that provides a pathway for cables from the camera platform into the interior cabinet of a compatible monitor cart, helping maintain an organized installation.
The PM2-XL provides an adjustable height range of 35" to 57" and is designed for quicker, easier installation. It is 8" taller than the previous generation, providing additional height for compatible display configurations. Optional camera and codec brackets allow the mount to be configured for different video conferencing equipment.
For AVFI Products Only
Accessories are available to customize AVFI products to meet your needs. Please check each product for compatibility before ordering. Not all options fit every AVFI product.
Related Products / Options
Specifications
-
Model: PM2-XL
-
Product Type: Large Single Display Mount
-
Display Size: Most 60" - 90" displays
-
Maximum Display Weight: 200 lbs.
-
VESA Compatibility: Up to 1100 x 650 mm
-
Width: 45"
-
Depth: 9"
-
Height: 35" - 57"
-
Construction: 11-gauge steel
-
Finish: Scratch-resistant powder coat
-
Color: Black
-
Installation: Designed for table-height installations
-
Mounting: Integrates with a fixed credenza or compatible AVFI monitor cart
-
Camera/Codec Shelf: Included
-
Camera Mount: Adjustable height during setup
-
TV Bracket: Adjustable height during setup
-
Cable Management: Hidden wiring channel inside main pillar
-
Installation Design: Designed for quicker, easier installation
-
Height Comparison: 8" taller than the previous generation
-
Use: Large-display video conferencing, presentations, collaboration spaces, conference rooms, classrooms, training environments, and portable roll-about video systems
-
Compatibility: Accommodates most 60" - 90" displays within the specified weight and VESA limits
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
