Description

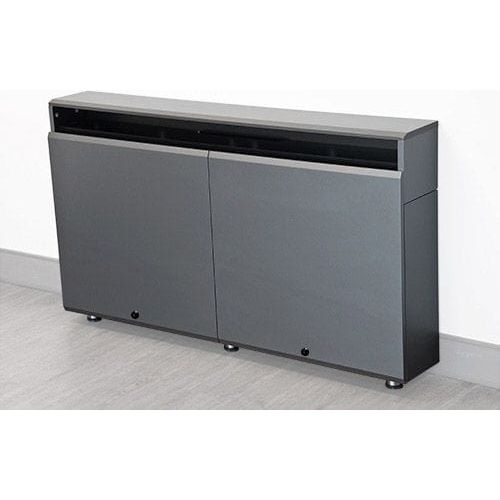

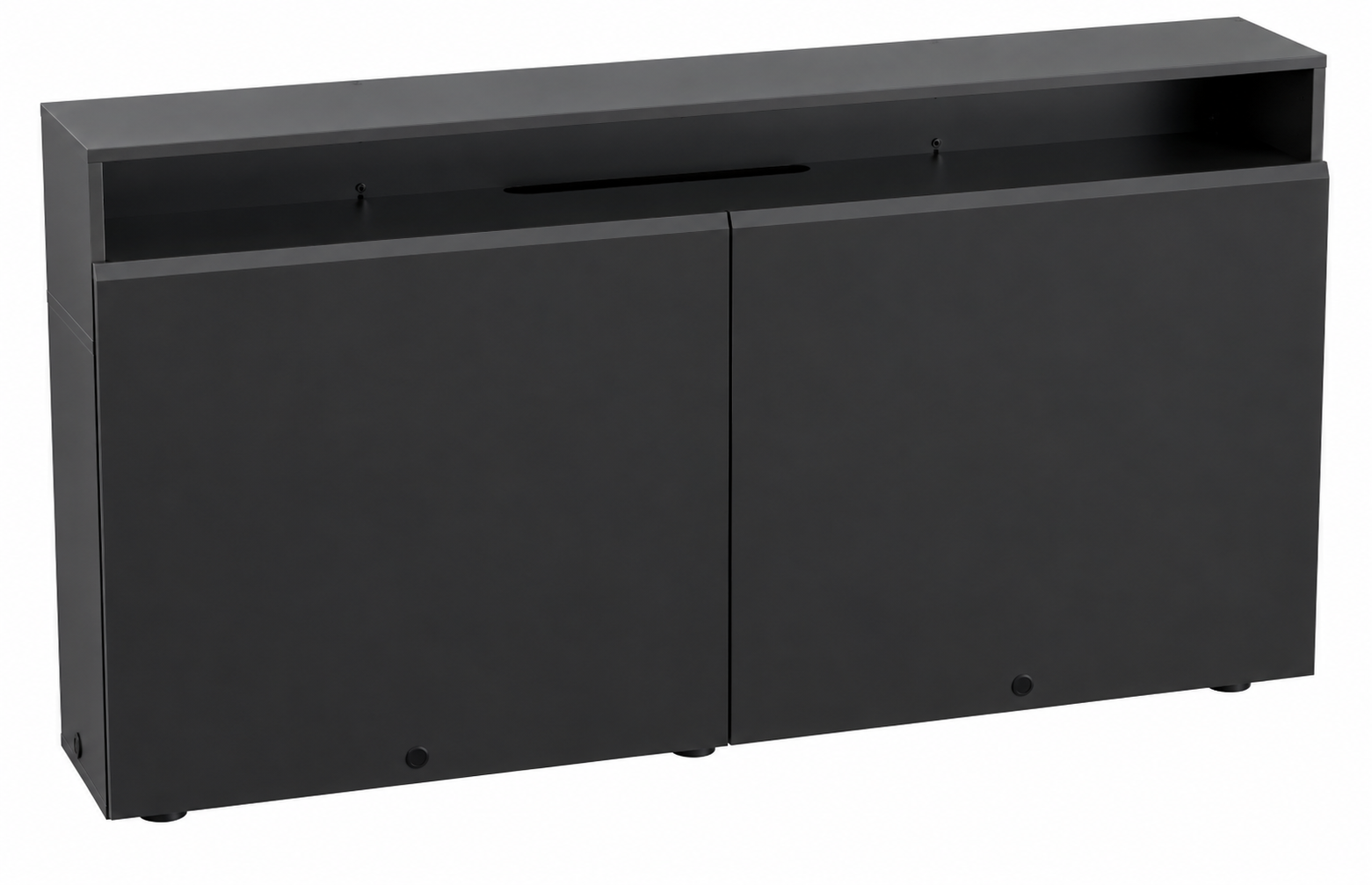

The AVFI Traditional Dual Rack Wall Mounted Credenza CR2-WM is a fully assembled, wall-secured AV credenza that combines traditional furniture styling with space-efficient equipment storage. Designed for conference rooms, hallways, high-traffic areas, and professional presentation environments, its compact profile provides convenient rack equipment access while occupying less than 9 inches of depth.
The CR2-WM features elegant Thermowrap surfaces with matching beveled doors and precision European hardware. Its wall-mounted configuration helps save valuable floor space and can also contribute to ADA-compliant installations when positioned below a wall-mounted 65" to 90" TV. The removable legs provide flexibility for wall-secured installations.

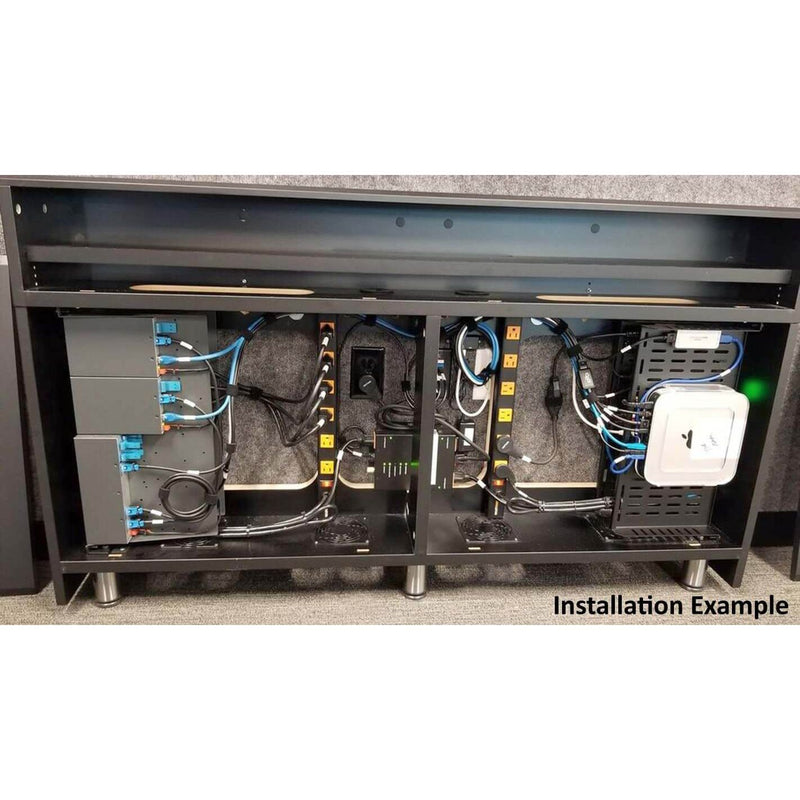

Each side of the credenza includes 3U rack rails, providing 6U of total rack capacity across the two bays. Lift-off locking front panels provide access to rack equipment and wiring, while locking side doors allow quick access to the front of installed rack units. The built-in rack configuration is designed to support organized AV equipment storage in compact installations.
A built-in height-adjustable sound bar shelf accommodates sound bars up to 54" W x 6" D x 6.5" H, providing an integrated solution for audio equipment. Vents at the top and bottom support equipment ventilation, with the option to add up to four cooling fans for additional airflow.
The CR2-WM is compatible with AVFI tables with or without bridges, making it suitable for integrated conference room installations. It can also be configured with power, cooling, cable management, camera, display mounting, and rack accessories. The unit ships assembled for convenient installation and deployment.
Options:
-
CR2-WM-CM: Dual Rack Wall Mounted Credenza with Cable Channel for organized cable routing.
-
PB: 6 Outlet 110V Power Bar for convenient equipment power access.
-
FAN: 120mm AC Cooling Fan for additional equipment ventilation.
-
CS: Camera/Codec Shelf, Wall Mounted, for supporting compatible camera or codec equipment.
-
TVCB: Camera Bracket for 32-55in TVs.
-
WM-3755: 32-65in Tilt Wall Mount for compatible displays.
-
9107: 19in Lacing Bar 1U for organized cable management.

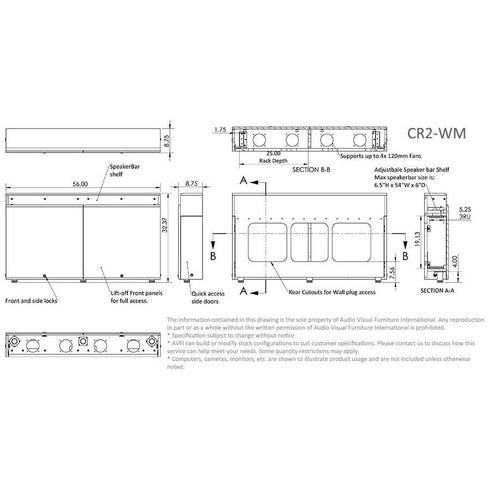

Specifications
-
Model: CR2-WM
-
Product Type: Traditional Dual Rack Wall Mounted Credenza
-
Width: 56"
-
Depth: 8.75"
-
Height: 32.5"
-
Rack Configuration: Two rack bays
-
Rack Capacity: 3U per side, 6U total
-
Rack Rails: RR3 3U rack rails per side
-
Rack Access: Lift-off locking front panels and locking side doors
-
Sound Bar Shelf: Height adjustable
-
Maximum Sound Bar Dimensions: 54" W x 6" D x 6.5" H
-
Cable Management: Integrated cable access for rack equipment
-
Ventilation: Top and bottom vents, with capacity for up to 4 optional fans
-
Mounting: Wall secured
-
Legs: Removable
-
ADA Application: Adds ADA compliance when placed below a wall-hanging 65" to 90" TV
-
Surface: Highly resistant Thermowrap
-

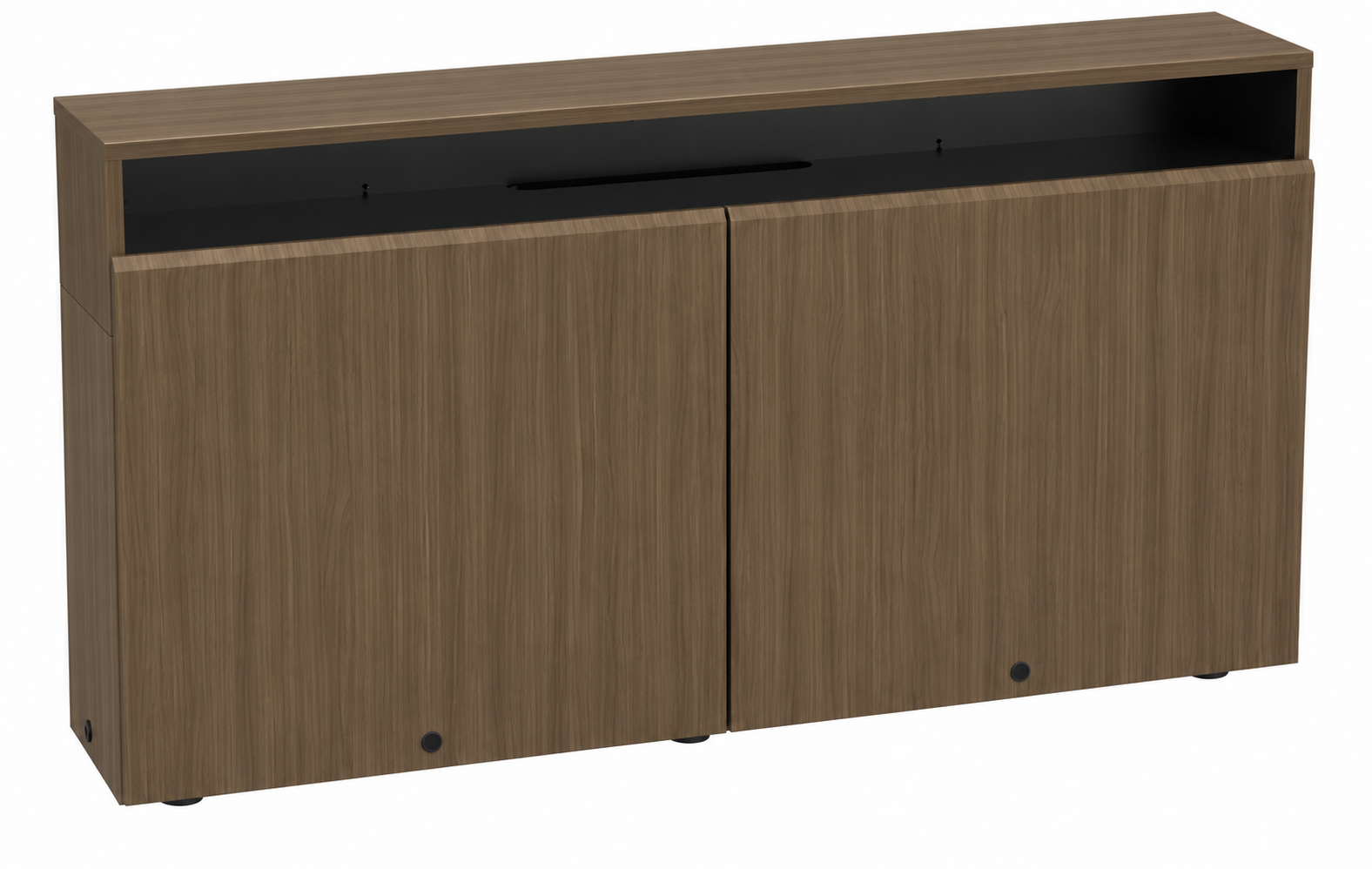

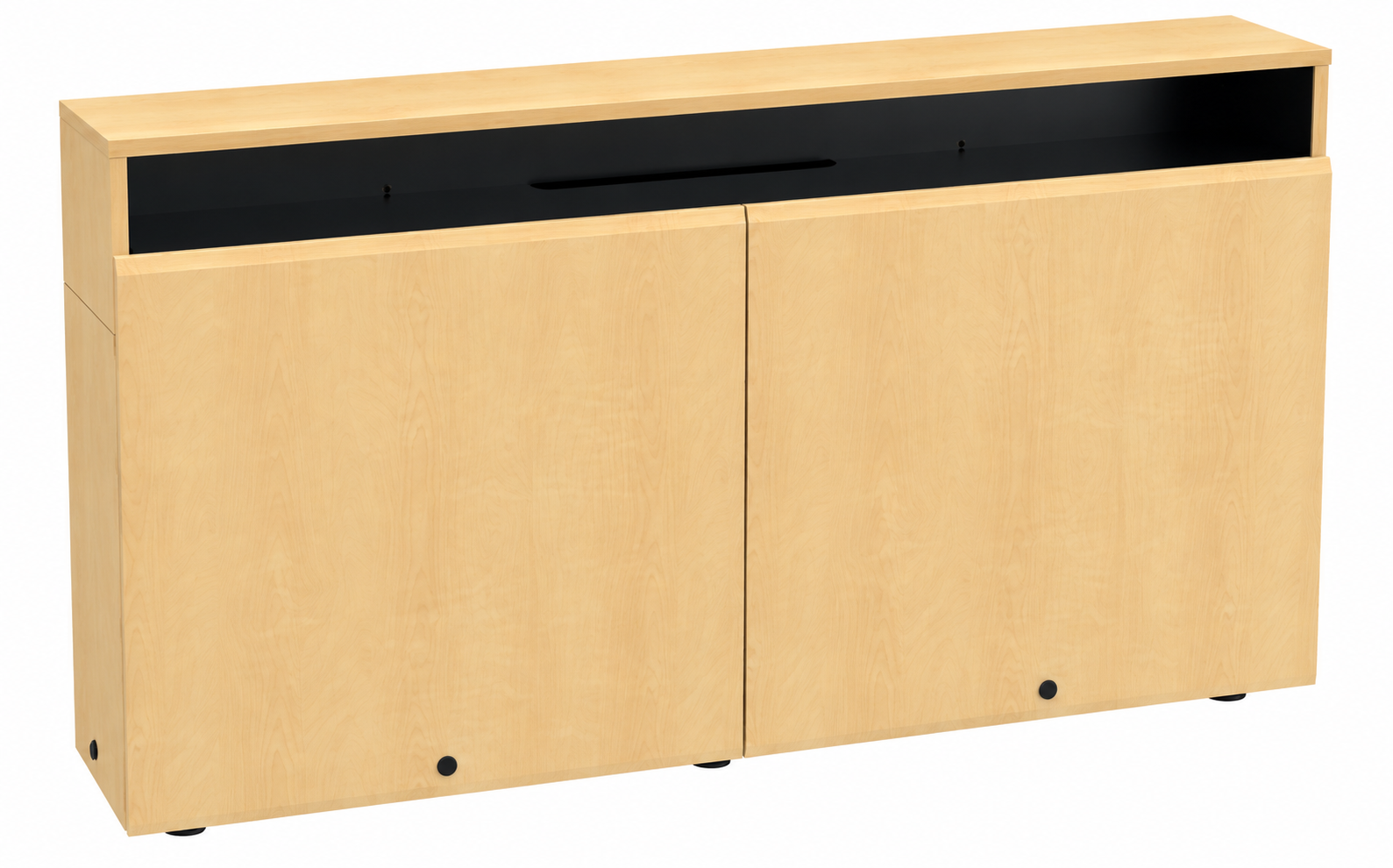

Finish: Multiple color options
-
Table Compatibility: Compatible with AVFI tables with and without bridges
-
Assembly: Ships assembled
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
