Description

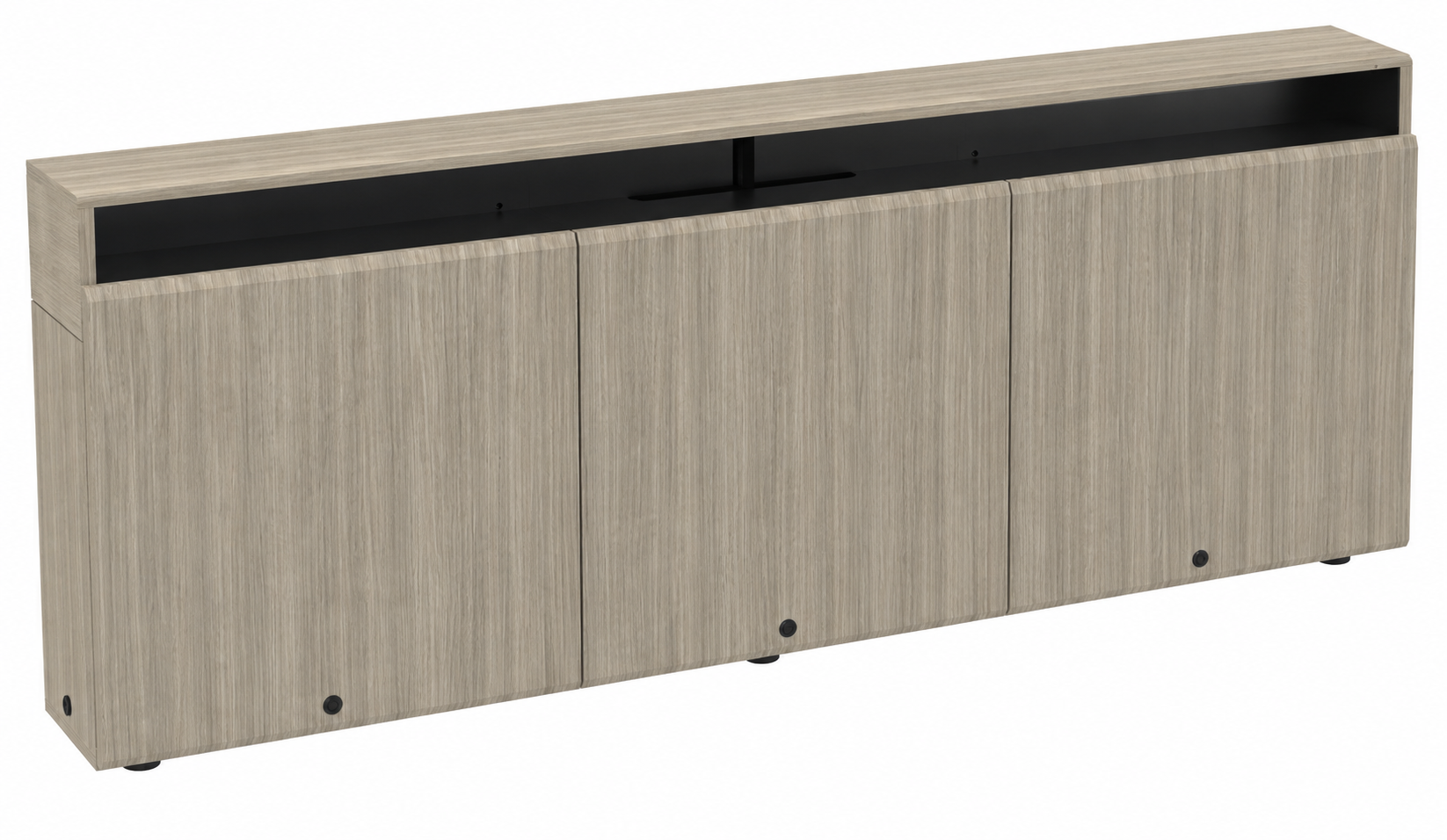

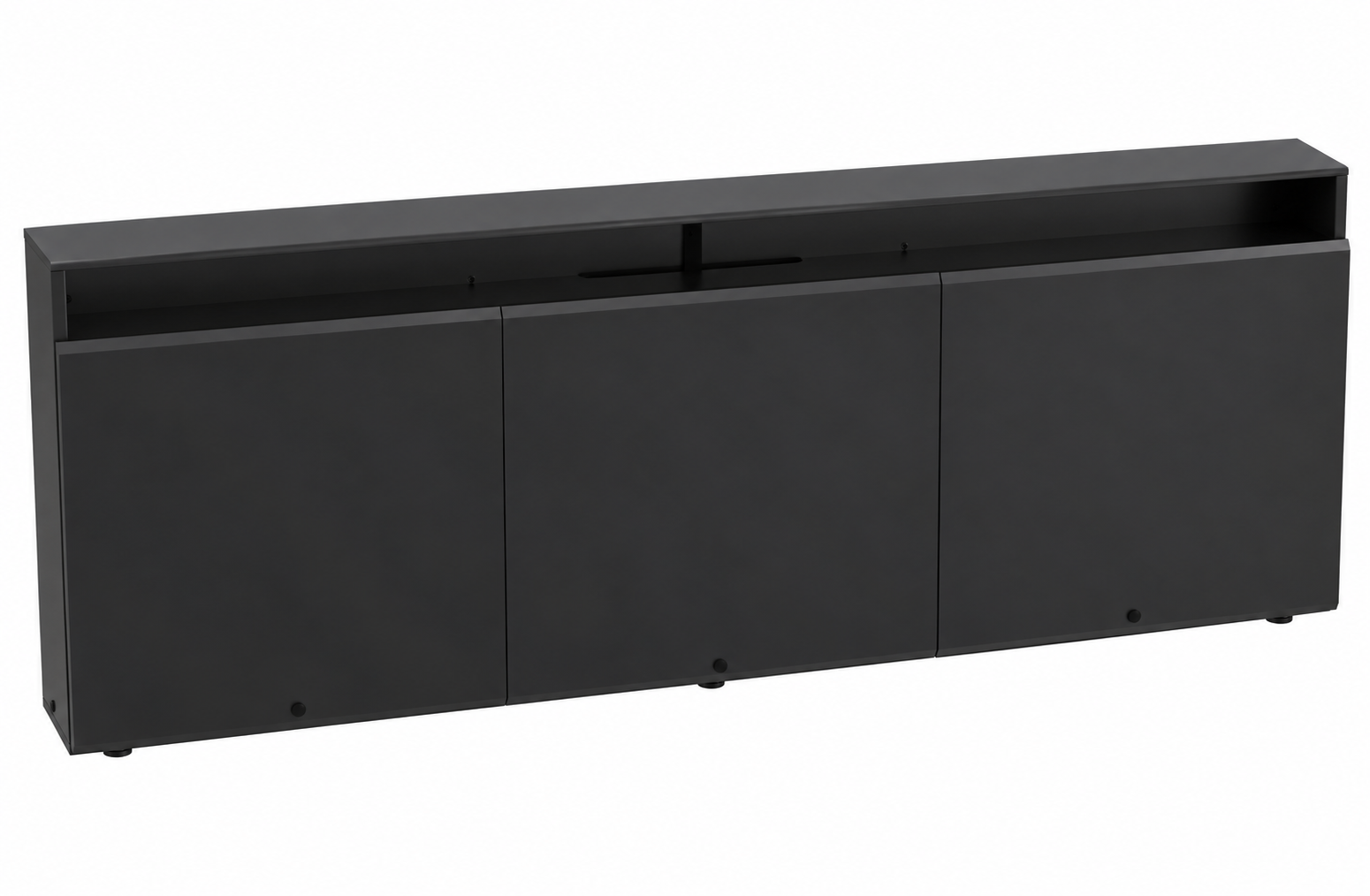

The AVFI CR3-WM Triple Rack Wall Mounted Credenza is a wall-secured AV equipment storage solution designed for conference rooms, classrooms, presentation spaces, and high-traffic areas. Its traditional furniture design combines elegant laminates, matching beveled doors, and precision European hardware for a professional appearance while providing organized access to audiovisual equipment.

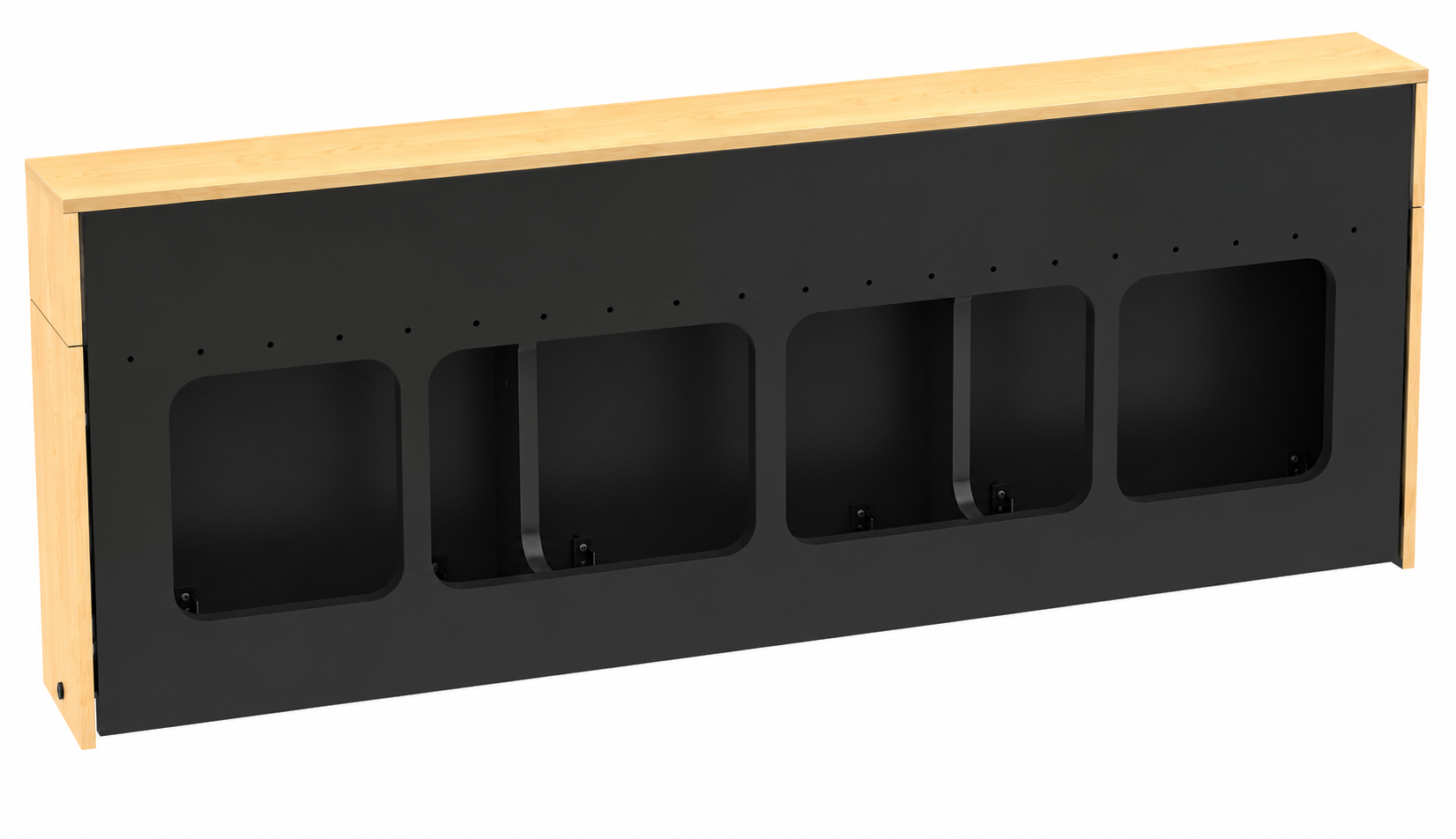

Each of the three bays features 3U rack rails mounted sideways, providing a total of 9U of rack space for compatible AV components. Lift-off locking front panels and locking side doors provide convenient access to electronics, wiring, and rack equipment. The integrated ventilation system includes vents at the top and bottom, with the option to add up to four cooling fans.
The CR3-WM includes a built-in, height-adjustable sound bar shelf designed to support audio integration. The shelf accommodates sound bars up to 82" wide x 6" deep x 6.5" high, while the compact 8.75" depth helps conserve floor and wall space. The credenza can also be used with AVFI tables with or without bridges for coordinated AV installations.
Designed for wall mounting, the CR3-WM can help support ADA-compliant installations when positioned below wall-hanging 70" to 90" TVs. Its removable legs provide installation flexibility, while the wall-secured construction makes it well suited for hallways and other areas where minimizing the furniture footprint is important. The unit ships assembled for efficient installation.
Options:
-
CR3-WM-CM: Triple Rack Wall Mounted Credenza with Cable Channel
-
PB: 6-Outlet 110V Power Bar
-
FAN: 120mm AC Cooling Fan
-
CS: Camera/Codec Shelf, Wall Mounted
-
TVCB: Camera Bracket for 32" to 55" TVs
-
WM-3755: 32" to 65" Tilt Wall Mount
-
9107: 19" Lacing Bar, 1U
Specifications
-
Model: CR3-WM
-
Width: 84"
-
Depth: 8.75"
-
Height: 32.5"
-
Rack Capacity: 9U total
-
Rack Rails: RR3, 3U per bay
-
Sound Bar Shelf: Height adjustable, accommodates sound bars up to 82"W x 6"D x 6.5"H
-
Construction: Wall-secured triple rack credenza
-
Finish: Highly resistant Thermowrap surface available in many colors
-
Access: Lift-off locking front panels and locking side doors
-
Ventilation: Top and bottom vents with capacity for up to 4 optional fans
-
Installation: Wall mounted with removable legs
-
Compatibility: Compatible with AVFI tables with or without bridges
-
Shipping: Ships assembled
-
Estimated Lead Time: Ships within 1–15 business days for standard finishes. Optional finishes may require up to 20 business days. Transit time is additional.
